Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

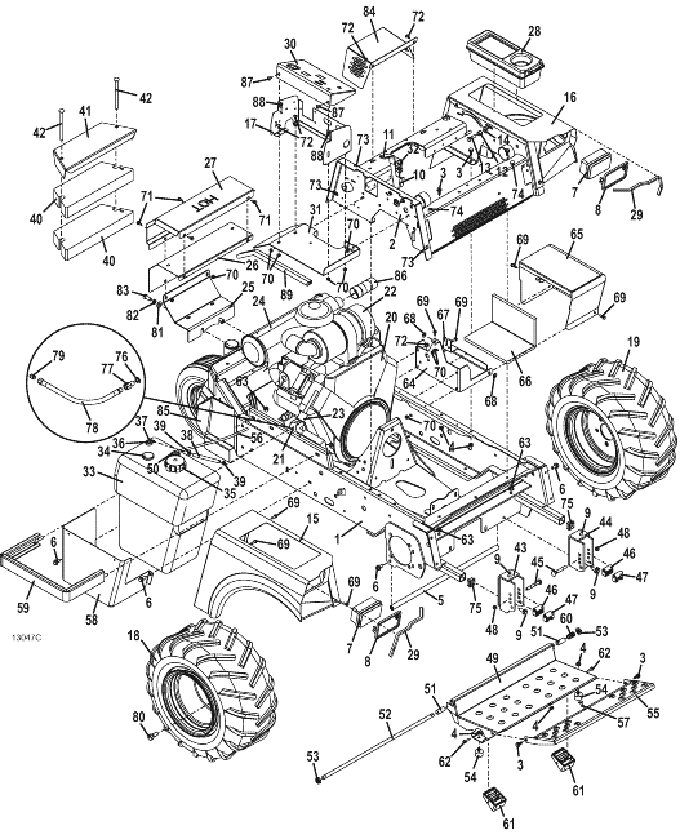

729BT6 • Tractor Assembly

2017

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T AC Lower Frame

644873

2

700 Upper Frame

645214

-

Upper Frame

645368

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

Tension Rod

780900

6

Bolt Whiz

253200

7

LED Flood Worklamp

182261

8

Snap Mount Worklamp Bezel

182251

9

Flange Bolt Whiz

253203

10

700T Throttle/Choke Mount Assembly

605824

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

13

Hex Bolt

243335

14

Washer

257040

15

Rt 7/900 Fender w/Decal

693230

16

Lt 7/900 Fender w/Decal

693231

17

Console Frame

722875

18

Right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

19

Left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

Turf Tire Only, 22 x 10 x 10

482473

-

OTR Turf Tire 22 x 11 x 10

482477

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Wheel & Turf Tire, 22 x 10 x 10

483946

20

29HP B & S Engine

100194

21

Briggs Oil Filter

100803

22

Air Cleaner

100209

22

Dust Ejector

100201

-

Air Filter - Outer HD

100936

-

Air Filter - Inner HD

100937

23

In-Line Fuel Filter Briggs

366560

24

Muffler

101255

25

Muffler Shield Bracket

766171

26

Muffler Shield

722837

27

Muffler Shield Outer

722841

28

Tool Box

422040

29

Fender Edge Trim - 700/900

822635

30

Console w/Decal

693121

31

Console Mount

645051

32

Mechanical Choke

142245

33

8.0 Gas Tank Assembly .25 BARB

605795

34

In-Tank Fuel Gauge

141144

-

Grommet

424275

35

Sealed Tether Fuel Cap

100212

36

Fuel Tube Bushing

101875

37

Fuel Tube

363928

38

Fuel Hose

821710

39

Hose Spring Clamp

280260

40

34 LB Counterweight

323933

41

34 LB Weight Cover

729514

42

Carriage Bolt

247325

43

700/900 right Quick Disconnect Deck Mount

643092

44

700/900 left Quick Disconnect Deck Mount

643093

45

Special Carriage Bolt

247280

46

Deck Mount Bushing

282575

47

Floating Deck Mount Bushing

282576

48

Nylon Insert Nut

253460

49

Adjustable Foot Platform Assembly - 700/900

604346

50

Fuel Tank Valve Kit

606830

51

Nylon Bearing

422615

52

Foot Platform Pivot Rod - 700

780673

53

Nylon Insert Nut

253470

54

Rubber Bumper

424052

55

Foot Platform Extension - 700

643304

56

Fuel Vapor Hose

821742

57

Carriage Bolt

247130

58

8 Gallon Tank Shield

723339

59

8 Gallon Tank Mount

644826

60

Compression Spring

283312

61

Footrest Isolator Block

424100

62

Hex Bolt

243026

63

Whiz Nut

253043

64

Battery Box W/O Draw latch

644163

65

Battery Box W/O Latch Lid

644478

66

Battery Tray Pad

427278

67

Battery Hold Down Bracket

754135

68

Washer

257020

-

Nylon Nut Insert

253440

69

Hex Bolt Whiz

253175

70

Whiz Nut

253025

71

Hex Bolt Whiz

253173

72

Bolt Whiz Truss

253176

73

Speed Nut

254431

74

Rubber Bumper

424015

75

Square Plastic Plug - 1 in. ID

422065

76

Aluminum Washer

773010

77

Adapter

887123

78

Engine Oil Drain Hose Assembly

424474

79

Metal Pipe Plug

365515

80

Lug Bolt

248565

81

Washer

257051

82

Lock Washer

257422

83

Hex Bolt

243445

84

Coupler Shield 700BT

722985

85

8 Gallon Tank Heat Shield

721181

86

Exhaust Extension

833682

-

Whiz Nut

253020

-

Whiz Hex Bolt

253164

87

Bolt

253180

88

Plastic Retainer Nut

254432

89

Console Mount Seal

822501

90

729BT6 Decal Set

605336

-

729BT6 Decal Set

605423
