729BT6 • Wiring & Lights- Serial #6713305 & Below

2017

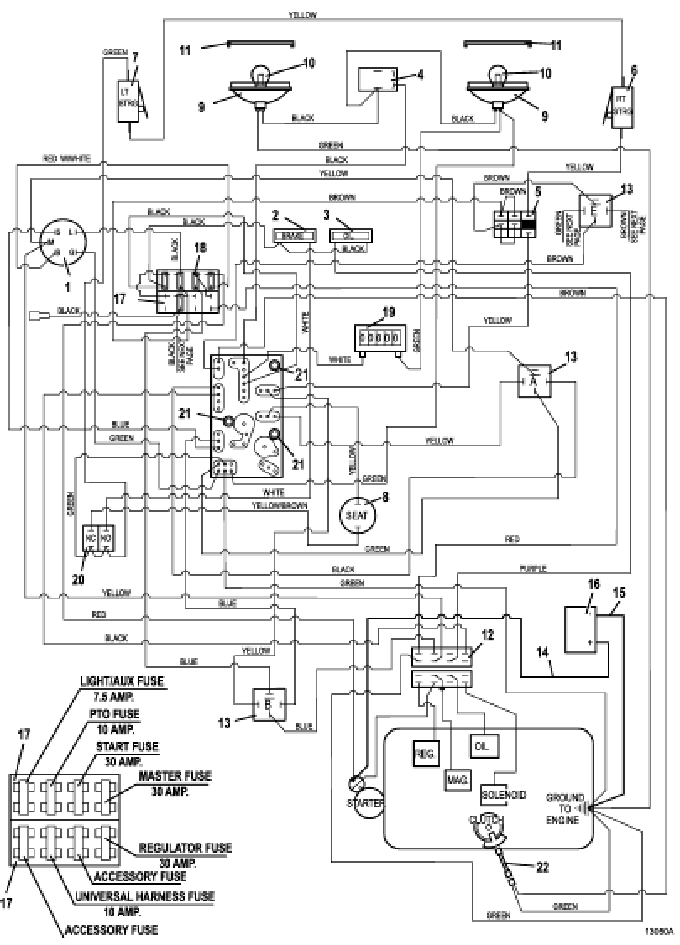

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch B & S/Kohler

183806

-

Nut

254498

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Switch Push/Pull

183925

6

Lever Switch

183860

-

Steering Switch Mount - right

720160

8

Lever Switch

183860

-

Steering Switch Mount - left

720161

8

Twist-in Seat Switch

183871

9

Flood Worklamp

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

8-Way Connector Mount

184940

13

12V DC Relay w/Diode

184266

14

Battery Cable 14" Red

180313

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

15

Battery Cable 16" Black

180276

16

12 Volt Sidepost Battery Wet

180130

-

12 Volt Sidepost Battery Dry

180131

-

Hex Bolt

243309

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

PC Board Support Spacer

423690

22

Pigtail Cable Assembly

388840

23

Wiring Assembly

605903
