Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

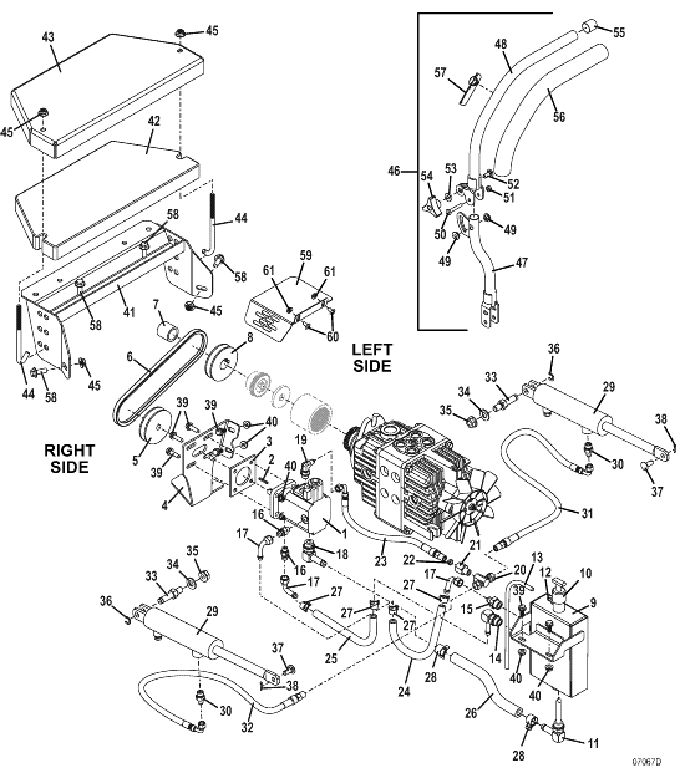

729BT6 • Optional Hydraulic Lift Assembly

2018

Optional Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Counterclockwise Hydraulic Pump with Solenoid Valve

290074

-

Seal

125166

-

Hydraulic Solenoid Valve

144950

2

Square Key

281540

3

Hydraulic Pump Spacer

775049

4

Hydraulic Pump Mount 700T

725504

5

Sheave

831436

6

Belt

381886

7

Spacer

902588

8

Sheave

831444

9

Auxiliary Oil Tank

644845

10

M1 Oil Reservoir Dipstick

100728

11

Fitting with Strainer

603330

12

Straight Barbed Fitting

363826

13

Clear Vent Hose

821724

14

Adapter

360062

15

Adapter Fitting O-Ring Flare

360080

16

Adapter

360053

17

Fitting

363846

18

Adapter

360082

19

O-Ring Adapter

360048

20

Swiveltee Adapter

360005

21

O-Ring Adapter

360045

22

Flow Restrictor

780507

23

Hose Assembly

424301

24

Hydraulic Hose

821783

25

Hydraulic Hose

821776

26

Hydraulic Hose

821797

27

Spring Hose Clamp

280264

28

Spring Hose Clamp

280266

29

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

30

O-Ring Adapter

360052

31

Hose Assembly

424310

32

Hose Assembly

424550

33

Cylinder Mount Pin with Groove

887119

34

Washer

257062

35

Whiz Nut

253066

36

External Retainer

263500

37

Clevis Pin

261339

38

Cotter Pin

260648

39

Hex Flange Whiz Bolt

253193

40

Whiz Nut

253035

41

Weight Mount

644915

42

750 Counterweight

323951

43

50 lb. Weight Cover

729691

44

Hook Bolt

240151

45

Whiz Nut

253043

46

Rt Standard Adjustable Steering Lever Assembly w/Switch

603804

47

Lower Rt Folding Steering Lever w/Lift

824579

48

Upper Rt Standard Adjustable Steering Lever

824577

49

Step Bushing

422508

50

Hex Bolt

243035

51

Lock Nut

253850

52

Carriage Bolt

247130

53

Flat Washer

257019

54

Thumb Screw

252858

55

.75 ID Vinyl Cap

422095

56

Handle Grip

422179

57

Hydro Lift Switch Mount Assembly

604799

58

Whiz Flange Bolt

253203

59

Auxillary Pump Shield

722977

60

Truss Whiz Bolt

253176

61

Whiz Nut

253025
