729BT6 • Wiring & Lights

2010

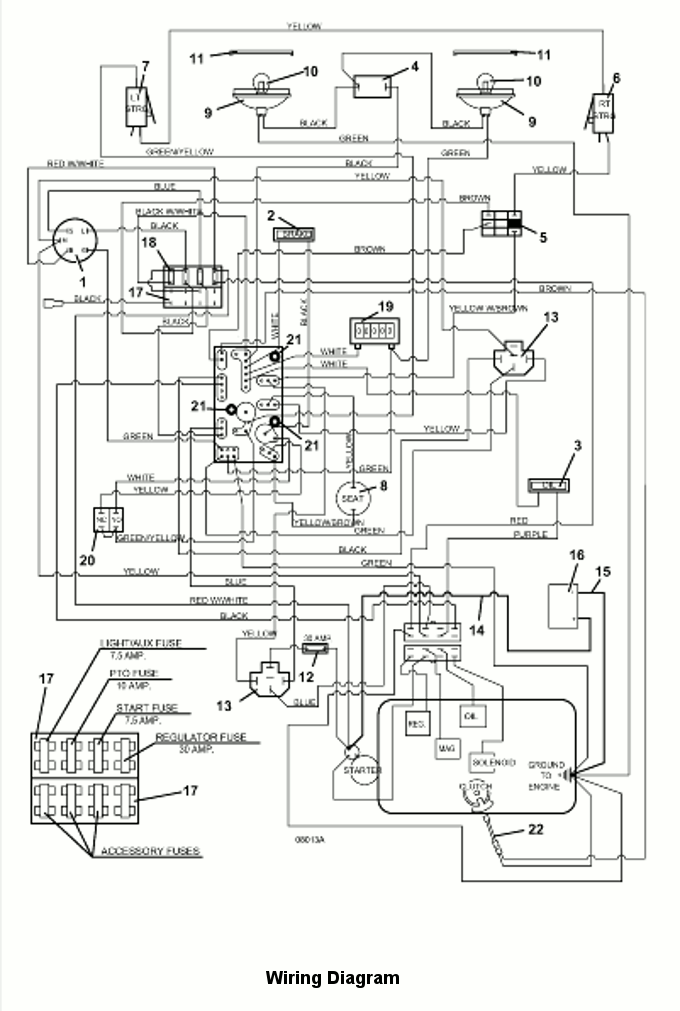

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch B & S/Kohler

183806

-

Key Ignition w/Cover

101101

-

Nut

254498

-

Panel Plastic

422078

2

Brake Light Indicator

183326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Switch Push/Pull

183925

6

Lever Switch

183860

-

Steering Switch Mount - right

720160

8

Lever Switch

183860

-

Steering Switch Mount - left

720161

8

Twist-in Seat Switch

183871

9

Flood Worklamp

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

In-Line Auto Fuse Holder

181735

-

Auto ATC - 30 Fuse

181470

13

12V DC Relay

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

14

Battery Cable 14" Red

180313

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

15

Battery Cable 16" Black

180276

16

12 Volt Sidepost Battery Wet

180130

-

12 Volt Sidepost Battery Dry

180131

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

PC Board Support Spacer

423690

22

Pigtail Cable Assembly

388840

23

729/729BT Wiring Assembly

604988

24

700 AC Console Decal

161128

return to 729BT6 index return to top of page
