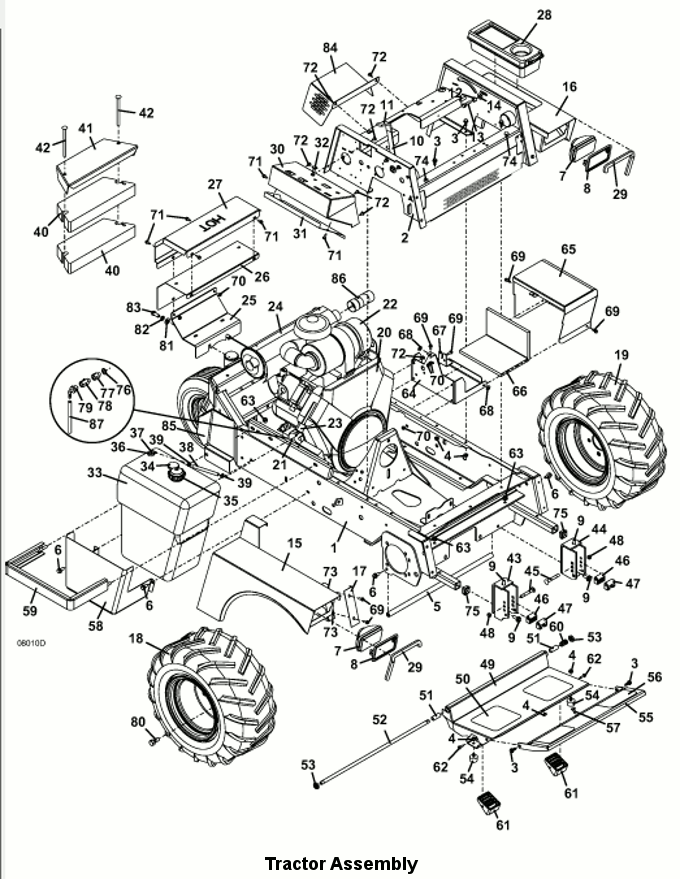

735BT6 • Tractor Assembly

2009

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T AC Lower Frame

644873

2

700T Upper Frame

644874

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

Tension Rod

780900

6

Bolt Whiz

253200

7

Flood Worklamp

182253

8

Snap Mount Worklamp Bezel

182251

9

Flange Bolt Whiz

253203

10

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

13

Hex Bolt

243335

14

Washer

257040

15

Fender W/Safety Decal RT

693210

-

Decal - 735 Big Block Trim RT

163484

16

Fender W/Safety Decal LT

693211

-

Decal - 735 Big Block Trim LT

163485

17

right Fender Cover Panel

722062

18

right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

19

left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

20

35HP B & S Engine

100193

21

Briggs Oil Filter

100803

22

Air Cleaner

100209

-

Air Hood

100203

-

Air Filter - Outer HD

100936

-

Air Filter - Inner HD

100937

23

In-Line Fuel Filter Briggs

366560

24

Muffler

101255

25

Muffler Shield Bracket

766171

26

Muffler Shield

722837

27

Muffler Shield Outer

722841

28

Tool Box

422040

29

Fender Edge Trim - 700/900

822635

30

Console w/Decal - 96 AC

693100

31

Console Panel Fill - 96

721152

32

Mechanical Choke

142233

33

8.0 Gas Tank Assembly

604844

34

In-Tank Fuel Gauge

141144

-

Grommet

424275

35

Fuel Cap

100210

36

Fuel Tube Bushing

101875

37

Fuel Tube

363928

38

Fuel Hose

821710

39

Hose Spring Clamp

280260

40

34 LB Counterweight

323933

41

34 LB Weight Cover

729514

42

Carriage Bolt

247325

43

700/900 right Quick Disconnect Deck Mount

643092

44

700/900 left Quick Disconnect Deck Mount

643093

45

Special Carriage Bolt

247280

46

Deck Mount Bushing

282575

47

Floating Deck Mount Bushing

282576

48

Nylon Insert Nut

253460

49

Adjustable Foot Platform Assembly - 700/900

604346

50

Foot Rest Tread

420905

51

Nylon Bearing

422615

52

Foot Platform Pivot Rod - 700

780673

53

Nylon Insert Nut

253470

54

Rubber Bumper

424052

55

Foot Platform Extension - 700

603301

56

Foot Rest Extension Tread

420904

57

Carriage Bolt

247130

58

8 Gallon Tank Shield

723339

59

8 Gallon Tank Mount

644826

60

Compression Spring

283312

61

Footrest Isolator Block

424100

62

Hex Bolt

243026

63

Whiz Nut

253043

64

Battery Box W/O Draw latch

644163

65

Battery Box W/O Latch Lid

644478

66

Battery Tray Pad

427278

67

Battery Hold Down Bracket

754135

68

Washer

257020

-

Nylon Nut Insert

253440

69

Hex Bolt Whiz

253175

70

Whiz Nut

253025

71

Hex Bolt Whiz

253173

72

Bolt Whiz Truss

253176

73

Speed Nut

254431

74

Rubber Bumper

424015

75

Square Plastic Plug - 1 in. ID

422065

76

Aluminum Washer

773010

77

Adapter

887123

78

Oil Drain Valve

143610

79

Nylon Fitting

363848

80

Lug Bolt

248565

81

Washer

257051

82

Lock Washer

257422

83

Hex Bolt

243445

84

Coupler Shield 700BT

722985

85

8 Gallon Tank Heat Shield

721181

86

Exhaust Extension

833682

-

Muffler Clamp

101370

87

Oil Drain Tube

821751

88

735BT6 Decal Set

605343
