Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

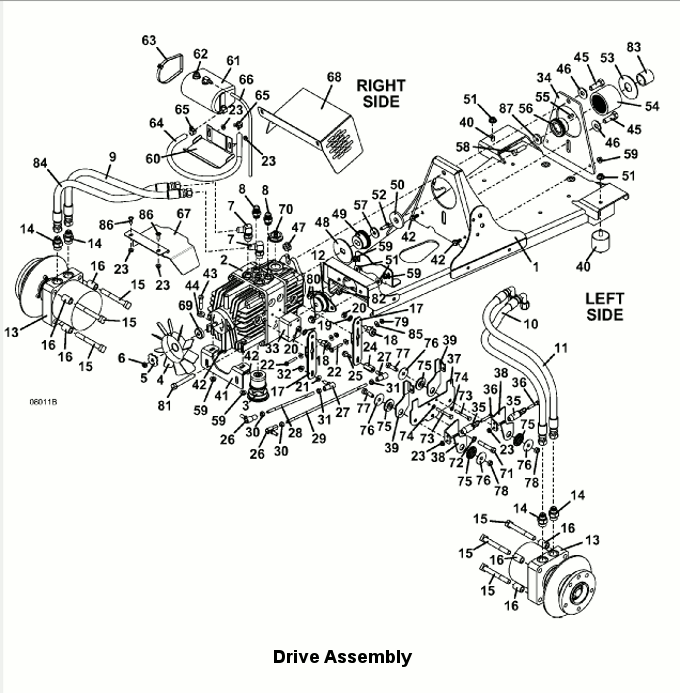

735BT6 • Drive Assembly

2010

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Drive Train Mount 700T Briggs

644876

2

Parker 16cc Tandem Hydro

391470

3

Tandem Transmission Filter

130505

4

8.3" T6 Fan

130434

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

O-Ring Adapter

360061

8

Fitting Adapter

360064

9

Hose Assembly

424384

10

Hose Assembly

424385

11

Hose Assembly

424386

12

Flange VIB ISO

424070

13

T6 Wheel Motor with Hub

603614

14

O-Ring Adapter

360063

15

Square Head Bolt

243622

16

Wheel Motor Spacer

902299

17

Tandem Bent Neutral Return Arm

644862

18

600T Eccentric Roller Assembly

603729

19

External Star Washer

257410

20

Nut

254450

21

Flat Washer

257019

22

Hex Bolt

270832

23

Nut Whiz

253025

24

Neutral Return Spacer

783730

25

Hex Whiz Bolt

253186

26

Righthand Thread Ball Joint

265615

27

Lefthand Thread Ball Joint

265616

28

Steering Rod

780154

29

Steering Rod

780156

30

Nut

254441

31

Nut

254444

32

Whiz Nut

253038

33

Plastic RTN Spacer

422039

34

Tandem Pump Mount Spacer

775123

35

Extension Spring

283823

36

Hex Bolt

243030

37

Return Mount

729542

38

Return Arm

729639

39

Neutral Return Arm

729398

40

Vibration Isolator

424073

41

Front Pump Mount

725522

42

Hex Flange Whiz Bolt

253192

43

Hex Bolt

243215

44

Washer

257030

45

Hex Bolt

243570

46

Washer

257060

47

Nut Whiz

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer

424150

51

Whiz Nut

253043

52

Hex Bolt

243206

53

Washer

774184

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

Coupler Hub

388579

57

Washer

774020

58

Hex Bolt

243456

59

Whiz Nut

253035

60

Oil Reservoir W/A Bracket

644094

61

Hydraulic Expansion Tank

422033

62

3/8 inch Threaded Plastic Plug

365516

63

Tie

423154

64

Hydro Expansion Hose

821709

65

Spring Hose Clamp

280261

66

Clear Vent Hose

821723

67

Fan Shroud 700T

722976

68

Coupler Shield 700BT

722985

69

Fan Hub

130433

70

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

71

Hex Bolt

243350

72

Lock Washer

257412

73

Hex Bolt

243045

74

Lock Washer

257392

75

Neutral Return Pivot Bearing

822304

76

Fender Washer

257044

77

Hex Bolt

243335

78

Lock Nut

253890

79

Nut Whiz - 6MM x 1.0 YZP

274114

80

Flange Bolt Whiz

253203

81

Hex Bolt

243475

82

Nylon Nut Insert

253465

83

Spacer

902592

84

Hose Assembly

424383

85

Washer

257025

86

Bolt Whiz Phil Truss

253179

87

Washer

775124
