Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

900D 1.3L • Pump Assembly

2018

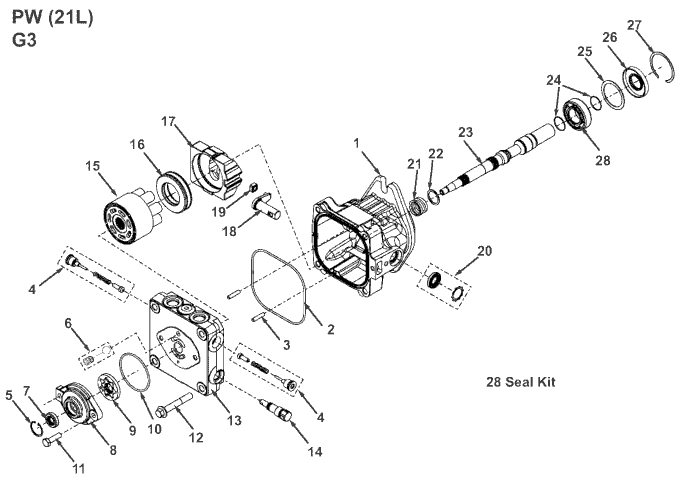

G3 Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 900D 1.3L Index Return to Top

Item #

Description

Part Number

1

Housing Kit

130058

2

Square Cut Sealing Ring

130180

3

Dowel Pin

130046

4

Check Valve Kit

130156

-

Check Plug O-Ring

130031

5

Internal Retainer

263162

6

Ball & Spring Assembly

130027

7

Seal

125165

8

Charge Pump Kit

130032

9

Gerotor Set

130060

10

Charge Cover Square Cut Sealing Ring

130020

11

Hex Bolt

243205

12

Flanged Hex Head Screw

271080

13

End Cap Kit w/o Plate

130047

14

NOT AVAILABLE

000000

-

Bypass Valve O-Ring

130018

-

Backup Ring

130517

15

Piston Block Assembly

130150

16

Thrust Bearing

130012

17

NOT AVAILABLE

000000

18

Control Shaft

130035

19

Guide Block

130065

20

Trunnion Seal Kit

125355

21

Block Spring

130016

22

Block Thrust Washer

130221

23

Shaft Kit

130172

24

Wire Retaining Ring

130169

25

Spacer Seal

130091

26

Seal

125372

27

Retaining Ring

130092

28

Seal Kit

130177
