Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

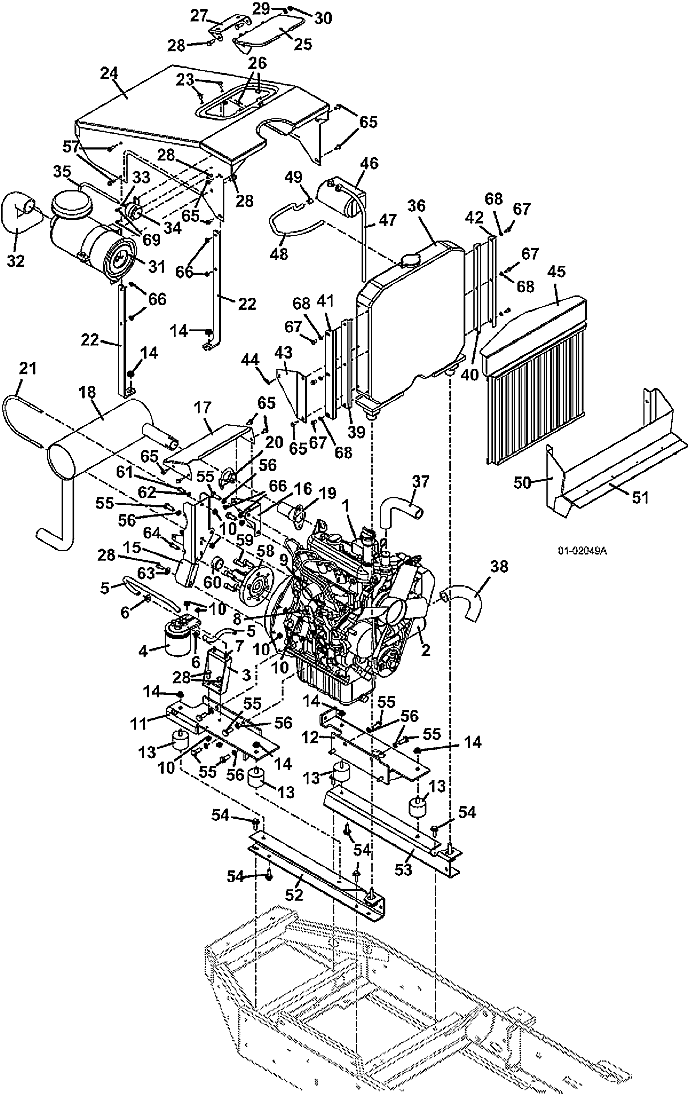

928D2 • Engine Assembly

2003

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

KUBOTA DIESEL ENGINE

100181

2

KUBOTA OIL FILTER

100805

3

400/900 FUEL FILTER MOUNT

644220

4

KUBOTA FUEL FILTER

101004

5

928D FUEL LINE HOSE

821716

6

SPRING TYPE HOSE CLAMP

280261

7

HEX FLANGE WHIZ BOLT

253192

8

928 LINKAGE EXTENSION

723063

9

HEX BOLT

243185

10

WHIZ NUT

253035

11

400/900 right ENGINE MOUNT

643028

12

400/900 left ENGINE MOUNT

643029

13

VIBRATION ISOLATOR

424078

14

WHIZ NUT

253043

15

900 MUFFLER BRACKET

643114

16

SHIELD MOUNT BRACKET

729094

17

CLUTCH SHIELD

722283

18

KUBOTA MUFFLER

101232

19

EXHAUST FLANGE

644237

20

EXHAUST CLAMP

101356

21

U-BOLT

321250

22

HOOD UPRIGHT SUPPORT

732576

23

WHIZ TRUSS BOLT

253176

24

900 HOOD with DECALS

693302

25

928 HOOD DOOR

643967

26

RUBBER BUMPER

424029

27

928 HOOD BRACKET

724059

28

HEX BOLT

243195

29

SPRING WASHER

284312

30

NYLON INSERT NUT

253450

31

KUBOTA AIR FILTER

100939

32

BREATHER HOSE

424530

33

SPRING HOSE CLAMP

280255

34

FILTER MINDER GAUGE with MOUNT

141012

35

FILTER MINDER HOSE

821695

-

BRASS BULK HD FITTING

360090

36

KUBOTA RADIATOR

101615

37

UPPER RADIATOR HOSE

101056

38

LOWER RADIATOR HOSE

101057

39

right RADIATOR GRILLE MOUNT

722114

40

left RADIATOR GRILLE MOUNT

722115

41

right OUTER GRILLE SUPPORT

722058

42

left OUTER SUPPORT GRILLE

722059

43

THROTTLE CABLE CLAMP

723134

44

CONDUIT CLIP

180635

45

400/900 GRILLE

644667

46

EXPANSION TANK

422012

47

CLEAR VENT HOSE

821748

48

HOSE

821749

49

SPRING HOSE CLAMP

280260

50

INTAKE DUCT with SHIELD

644360

51

GRILLE SEAL

424160

52

right ENGINE MOUNT RAIL

725300

53

left ENGINE MOUNT RAIL

725301

54

FLANGE WHIZ BOLT

253203

55

HEX BOLT

271120

56

LOCK WASHER

275580

57

HEX WHIZ BOLT

253175

58

CLUTCH STUB SHAFT

824641

59

M10 SOCKET HEAD SCREW

270085

60

SPACER

902586

61

8M HEX HEAD

271020

62

LOCK WASHER

257402

63

WASHER

257030

64

HEX BOLT

243205

65

HEX WHIZ BOLT

253173

66

WHIZ NUT

253035

67

HEX BOLT

270820

68

LOCK WASHER

257392

61

#8 SCREW

252043
