928D2 • Wiring

2003

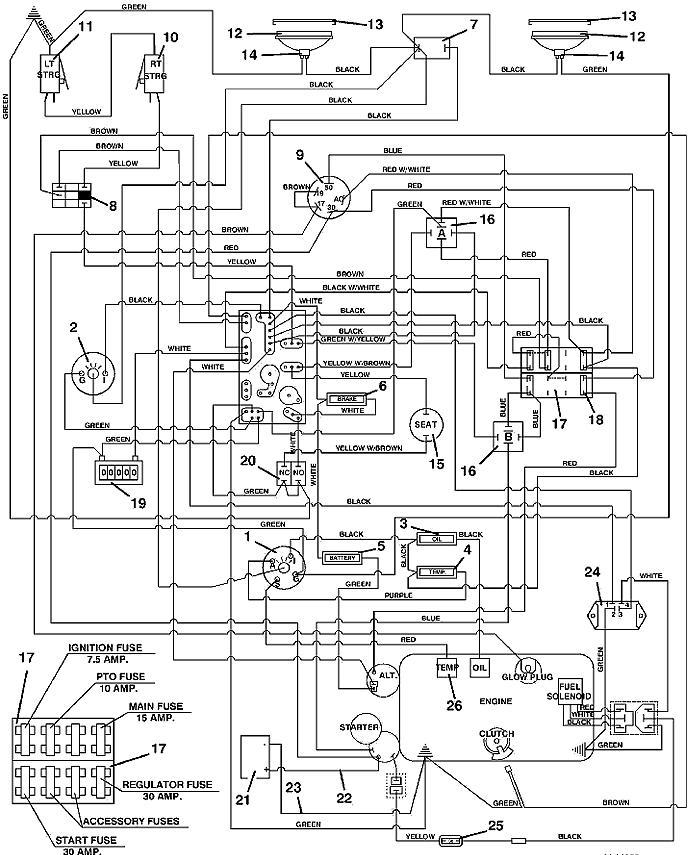

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ZONED ELECTRIC TEMPERATURE GAUGE

141160

-

GAUGE LIGHT KIT

141210

2

VOLTMETER GAUGE

141200

-

GAUGE LIGHT KIT

141210

3

OIL INDICATOR LIGHT

182327

4

TEMPERATURE INDICATOR LIGHT

182328

5

BATTERY INDICATOR LIGHT

182325

6

BRAKE INDICATOR LIGHT

182326

7

ROCKER SWITCH

184179

8

PUSH/PULL SWITCH

183925

9

KUBOTA SEALED KEY SWITCH

183827

-

KUBOTA DOUBLE NOTCH IGNITION KEY

101106

10

LEVER SWITCH

183860

-

right STEERING SWITCH MOUNT

720160

11

LEVER SWITCH

183860

-

left STEERING SWITCH MOUNT

720161

12

HALOGEN FLOOD WORKLAMP with PIGTAIL

182250

-

HALOGEN LIGHT BULB

182245

13

SNAP MOUNT WORKLAMP BEZEL

182251

14

WORKLAMP WIRE HARNESS

604895

15

SEAT SWITCH

183870

16

12v DC RELAY

184272

-

TYPE 1 6mm PUSH-ON

184570

-

.250 FAST-ON TERMINAL

184581

-

5 WAY FEMALE CONNECTOR

184926

17

FUSE BLOCK

181722

-

1 WIRE CLIP

184458

-

2 WIRE CLIP

184460

-

DOUBLE CLIP

184472

18

30 amp ATC AUTO FUSE

181470

-

15 amp ATC AUTO FUSE

181465

-

10 amp ATC AUTO FUSE

181462

-

7.5 amp ATC AUTO FUSE

181460

19

SNAP IN HOUR METER

141551

20

BRAKE INTERLOCK SWITCH

183894

21

12 VOLT SIDEPOST BATTERY

180130

22

14" RED BATTERY CABLE

180313

-

BATTERY BOOT

425223

-

BATTERY TERMINAL BOOT

425219

-

RED ALTERNATOR BOOT TERMINAL

425215

23

20" BLACK BATTERY CABLE

180282

24

INTERLOCK MODULE SWITCH

184220

25

INLINE AUTO FUSE HOLDER

181735

-

30 amp ATC AUTO FUSE

181470

26

TEMPERATURE SENDER

141222

27

928D 2000 CONSOLE WIRING ASSEMBLY

604995

28

CONSOLE DECAL for WATER COOLED 700

161131

return to 928d2 index return to top of page
