928D2 • Tractor Assembly

2004

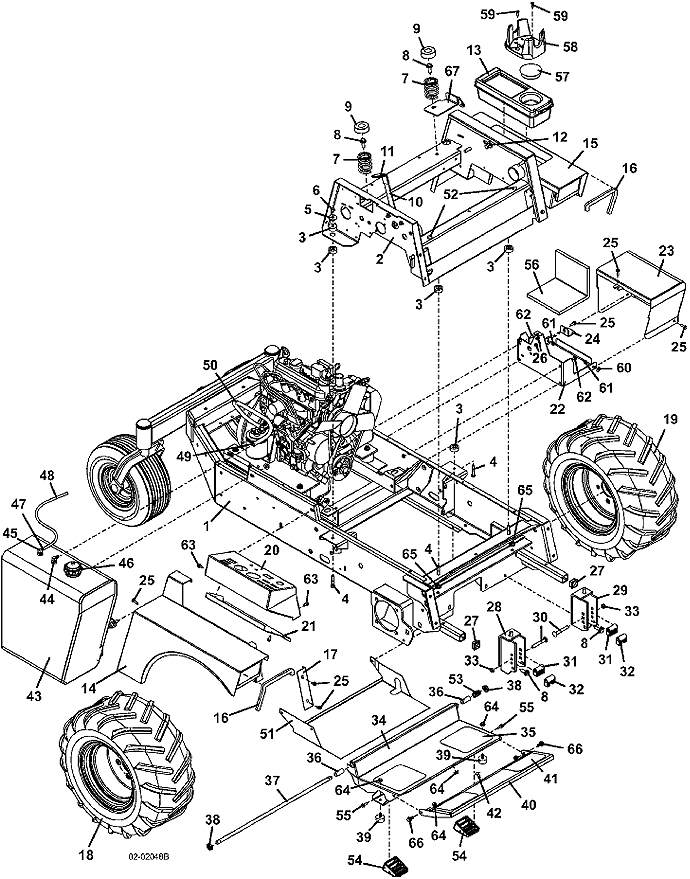

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 FRONT PORTS LOWER FRAME

644285

2

G2 UPPER FRAME

643871

3

STEP BUSHING

257037

4

HEX BOLT

243220

5

WASHER

774020

6

NYLON INSERT NUT

253450

7

COMPRESSION SPRING

283516

8

FLANGE WHIZ BOLT

253203

9

SEAT SPRING CAP

422127

10

THROTTLE ASSEMBLY

603856

-

CONTROL CABLE ASSEMBLY

323640

-

THROTTLE LEVER STOP

722009

11

HANDLE GRIP

422150

12

SPACER

902280

-

HEX BOLT

243330

-

WASHER

257040

13

TOOL BOX

422040

14

700/900S right FENDER with DECAL

693210

-

928D right TRIM DECAL

163370

15

700/900S left FENDER with DECAL

693211

-

928D left TRIM DECAL

163371

16

700/900 FENDER EDGE TRIM

822635

17

right FENDER COVER PANEL

722062

18

right WHEEL AND TIRE 22 X 11 X 10

483942

-

TURF TIRE 20 X 10 X 10

482474

-

BAR TREAD TIRE 22 X 11 X 10

482483

-

5 BOLT WHEEL 10 X 7.75

483420

-

WHEEL & TURF TIRE 20 X 10 X 10

483924

19

left WHEEL & TIRE 21 X 11 X 10

483943

-

TURF TIRE 20 X 10 X 10

482474

-

BAR TREAD TIRE 21 X 11 X 10

482483

-

5 BOLT WHEEL 10 X 7.75

483420

-

WHEEL & TURF TIRE 20 X 10 X 10

483924

20

CONSOLE with DECAL for LIQUID-COOLED DIESEL

693104

21

96 CONSOLE FILL PANEL

721152

22

BATTERY BOX ASSEMBLY with STRAP

644163

23

BATTERY BOX LID without LATCH

644478

24

BATTERY HOLD DOWN BRACKET

754135

25

HEX WHIZ BOLT

253175

26

WHIZ NUT

253025

27

1 INCH ID SQUARE PLASTIC PLUG

422065

28

700 right QD DECK MOUNT

643092

29

700 left QD DECK MOUNT

643093

30

SPECIAL CARRIAGE BOLT

247280

31

DECK MOUNT BUSHING

282575

32

DECK MOUNT FLOATING BUSHING

282576

33

NYLON INSERT NUT

253460

34

700/900 ADJUSTABLE FOOT PLATFORM ASSEMBLY

604346

35

FOOT REST TREAD

420905

36

NYLON BEARING

422615

37

FOOT PLATFORM PIVOT ROD

780673

38

NYLON INSERT NUT

253470

39

RUBBER BUMPER

424052

40

FOOT PLATFORM EXTENSION

603301

41

FOOT REST EXTENSION TREAD

420904

42

CARRIAGE BOLT

247130

43

8 GALLON DIESEL FUEL TANK with DECAL

693234

44

FUEL TUBE

101837

45

FUEL TUBE

101835

46

CAP with FUEL LEVEL

141130

47

HOSE SPRING CLAMP

280257

48

FUEL LINE RETURN HOSE

821740

49

HOSE SPRING CLAMP

280261

50

FUEL LINE HOSE

821716

51

G2 TRASH SHIELD

721383

52

RUBBER BUMPER

424015

53

COMPRESSION SPRING

283312

54

FOOTREST ISOLATOR BLOCK

424100

55

HEX BOLT

243026

56

BATTERY TRAY PAD

427275

57

3.252 DIAMETER CUP HOLE PLUG

422066

58

CUP HOLDER

150225

59

CAP SCREW

259030

-

NUT

254436

60

WASHER

257020

61

NYLON INSERT NUT

253440

62

TRUSS WHIZ BOLT

253176

63

HEX WHIZ BOLT

253173

64

WHIZ NUT

253035

65

WHIZ NUT

253043

66

HEX FLANGE WHIZ BOLT

253192

67

BRAKE REINFORCEMENT PIN

729230

68

DECAL SET for 928D2 with SIDE CONSOLE

604302
