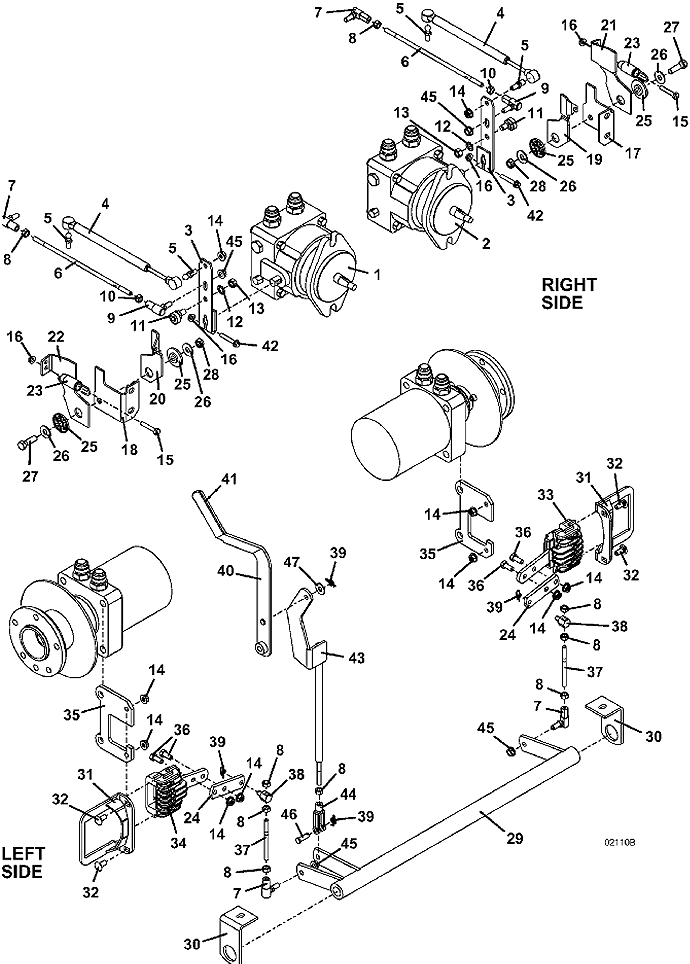

928D2 • Drive Linkage Assembly

2005

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

left HYDRO PUMP

391452

2

right HYDRO PUMP

391453

3

right PUMP CONTROL ARM

725338

4

DAMPER

285031

5

BALL STUD

265680

6

PUMP STEERING LINKAGE ROD

780164

7

righthand thread BALL JOINT

265615

8

NUT

254441

9

lefthand thread BALL JOINT

265616

10

NUT

254444

11

ECCENTRIC ROLLER ASSEMBLY

603726

12

STAR EXTERNAL WASHER

257410

13

NUT

254450

14

WHIZ NUT

253035

15

HEX BOLT

243035

16

WHIZ NUT

253025

17

right NEUTRAL RETURN MOUNT

729225

18

left NEUTRAL RETURN MOUNT

729226

19

right NEUTRAL RETURN ARM

729138

20

left NEUTRAL RETURN ARM

729139

21

right front NEUTRAL RETURN ARM

729136

22

left front NEUTRAL RETURN ARM

729137

23

EXTENSION SPRING

283823

24

900 SERIES CALIPER ARM EXTENSION

782858

25

NEUTRAL RETURN PIVOT BEARING

822304

26

WASHER

257040

27

HEX BOLT

243335

28

LOCK NUT

253890

29

LINKAGE ROD

644539

30

1.281 BRAKE PIVOT MOUNT

732616

31

M1/G2 CALIPER MOUNT

644121

32

CARRIAGE BOLT

247130

33

clockwise BRAKE CALIPER ASSEMBLY

481102

-

BRAKE PAD KIT

603150

34

counter-clockwise BRAKE CALIPER ASSEMBLY

481103

-

BRAKE PAD KIT

603150

35

7.75 BRAKE ROTOR MOUNT

776174

36

HEX BOLT

243195

37

BRAKE LINKAGE ROD

780158

38

.312 BRAKE LINKAGE PIN

880926

39

COTTER RING

260606

40

700/900 BRAKE LEVER

644035

41

HANDLE GRIP

422150

42

HEX WHIZ BOLT

253182

43

BRAKE LINKAGE ARM

644036

44

CLEVIS YOKE

265537

45

WHIZ NUT

253038

46

CLEVIS PIN

261284

47

WASHER

257030

48

TRUSS WHIZ BOLT

253190
