Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

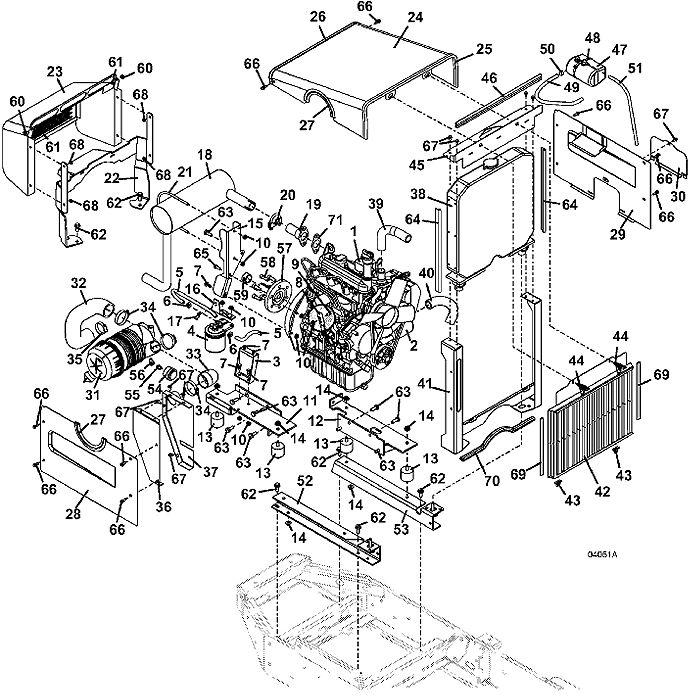

928D2 • Engine Assembly

2005

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

KUBOTA DIESEL ENGINE

100181

2

KUBOTA OIL FILTER

100805

3

400/900 FUEL FILTER MOUNT

644220

4

KUBOTA FUEL FILTER

101004

5

928D FUEL LINE HOSE

821716

6

SPRING TYPE HOSE CLAMP

280261

7

HEX FLANGE WHIZ BOLT

253192

8

928 LINKAGE EXTENSION

723063

9

HEX BOLT

243185

10

WHIZ NUT

253035

11

400/900 right ENGINE MOUNT

643028

12

400/900 left ENGINE MOUNT

643029

13

VIBRATION ISOLATOR

424078

14

WHIZ NUT

253043

15

MUFFLER MOUNT

729348

-

428D/928D MUFFLER MOUNT with BRACKET

644614

16

THROTTLE CABLE MOUNT

724573

17

CONDUIT CLIP

180635

18

KUBOTA MUFFLER

101232

-

400/900 SERIES MUFFLER

101229

-

EXHAUST CLAMP

101356

-

900 SERIES EXHAUST PIPE

101384

19

EXHAUST FLANGE

644237

20

EXHAUST CLAMP

101356

21

U-BOLT

321250

-

U-BOLT

321245

22

928D HOOD SUPPORT

644811

23

928D HOOD

644334

24

UPPER HOOD

644294

25

FRONT HOOD TRIM

822638

26

REAR HOOD TRIM

822637

27

AIR CLEANER TRIM SEAL

822513

28

928D RIGHT HOOD SIDE

722758

29

LEFT HOOD SIDE

644336

30

OIL FILTER COVER

722722

31

NELSON 90 DEGREE AIR CLEANER

100207

-

AIR CLEANER COVER CLIP

100197

-

AIR CLEANER COVER

100199

-

DUST EJECTOR

100202

-

KOHLER RAIN CAP

100203

-

OUTER HD AIR FILTER

100936

-

INNER HD AIR FILTER

100937

32

AIR INTAKE HOSE

424521

33

BREATHER INLET HOSE

424523

34

SCREW TYPE HOSE CLAMP

280305

35

SCREW TYPE HOSE CLAMP

280303

36

AIR INTAKE BOX MOUNT

644069

37

AIR INTAKE BOX

644062

38

KUBOTA RADIATOR

101615

39

UPPER RADIATOR HOSE

101056

40

LOWER RADIATOR HOSE

101057

41

LOWER RADIATOR MOUNT

644656

42

400D/900D GRILLE with GUARD

644670

43

REAR BELT ISOLATOR SHIELD

422090

44

SWELL ACTION LATCH

281305

45

UPPER RADIATOR MOUNT

644652

46

19.5 UPPER RADIATOR TRIM SEAL

822512

47

EXPANSION TANK

422012

48

TIE

423154

49

HOSE

821749

50

SPRING HOSE CLAMP

280260

51

CLEAR VENT HOSE

821748

52

right ENGINE MOUNT RAIL

725300

53

left ENGINE MOUNT RAIL

725301

54

FILTER MINDER GAUGE with MOUNT

141012

55

O-RING FILTER FITTING

363815

56

STREET ELL FITTING

363828

57

CLUTCH STUB SHAFT

824641

58

M10 SOCKET HEAD SCREW

270085

59

SPACER

902584

60

.25 THK SPACER

902297

61

NYLON INSERT NUT

253450

62

FLANGE WHIZ BOLT

253203

63

HEX BOLT

271121

64

400/900 BULB TAPE SEAL

822521

65

HEX BOLT

243205

66

HEX WHIZ BOLT

253175

67

HEX WHIZ BOLT

253173

68

WHIZ NUT

253025

69

RADIATOR GRILLE TRIM

822636

70

400/900 LOWER RADIATOR SEAL

822506

71

EXHAUST FLANGE GASKET

KU1421
