Genuine OEM Grasshopper® Mower Parts Diagrams

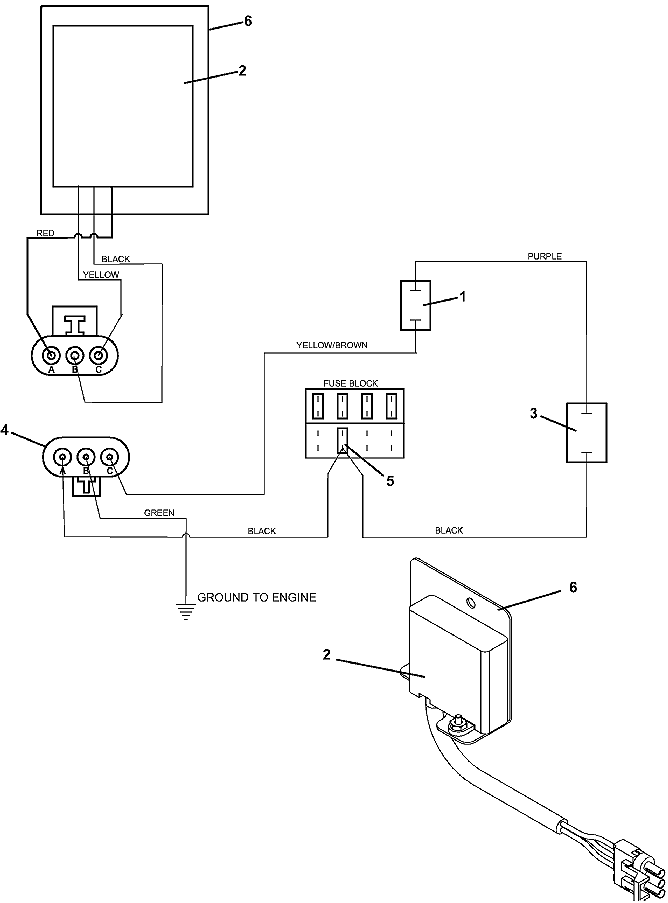

928D2 • Hydraulic Lift Wiring
2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
HYDRAULIC SOLENOID VALVE |
144950 |
2 |
TILT SWITCH POWER COMPONENTS |
183710 |
3 |
SEALED DOME SWITCH |
183940 |
- |
MOMENTARY TOGGLE |
183954 |
4 |
3-WAY MALE WP CONNECTOR |
184973 |
5 |
7.50 AUTO ATC FUSE |
181460 |
6 |
TILT SWITCH MOUNT |
722747 |
