930D2 • Engine Assembly

2009

Click on diagram to view super-sized image.

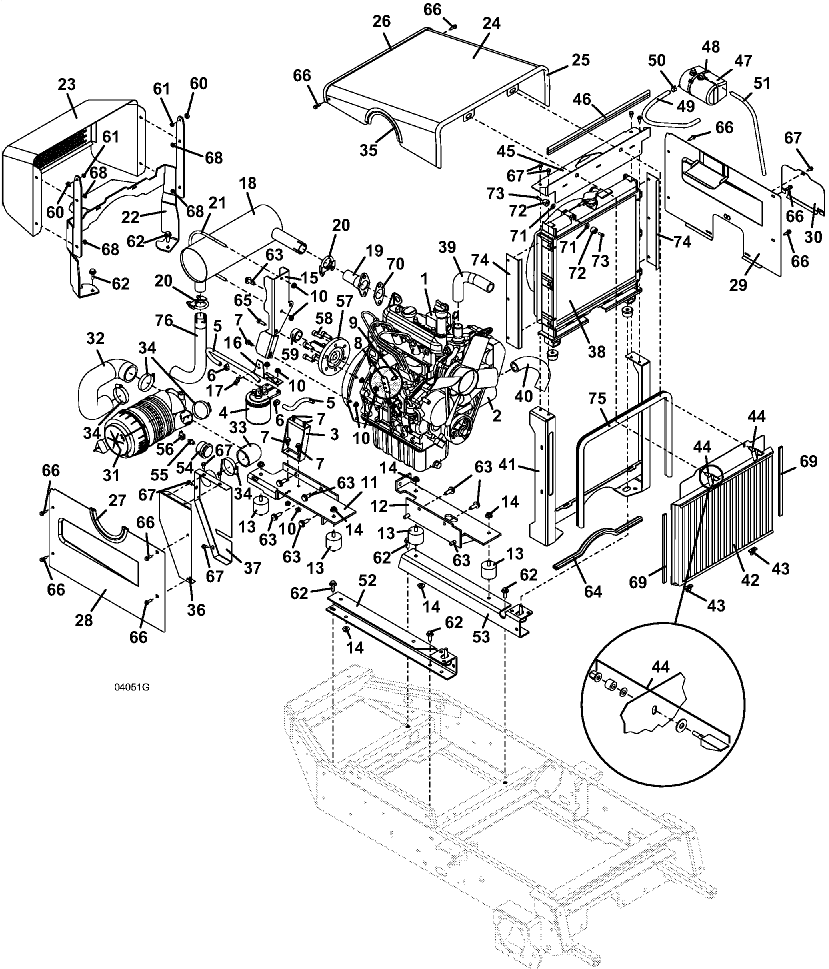

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100182

2

Kubota Oil Filter

100805

3

400/900 Fuel Filter Mount

644220

4

Kubota Fuel Filter

101004

5

928D Fuel Line Hose

821716

6

Spring Hose Clamp

280261

7

Hex Flange Whiz Bolt

253192

8

Extension Linkage

723063

9

Hex Bolt

243185

10

Whiz Nut

253035

11

400/900 Engine Mount - Right

643028

12

400/900 Engine Mount - Left

643029

13

Vibration Isolator

424078

14

Whiz Nut

253043

15

Muffler Mount

729348

16

Throttle Cable Mount

724573

17

Conduit Clip

180635

18

Kubota Straight Muffler

101234

-

IMCO 900 5" Muffler Conversion Kit

606566

19

Exhaust Flange W/A

644237

20

Exhaust Clamp

101356

21

U-Bolt

321250

22

928D/930D Hood Support

644849

23

928D/930D Hood

645303

24

Upper Hood

644294

25

Front Hood Trim

822639

26

Rear Hood Trim

822637

27

9.0 Air Cleaner Trim Seal

822510

28

928D Side Hood - Right

722758

29

Side Hood - Left

644336

30

Oil filter Cover

722722

31

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Kohler Rain Cap

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

32

Air Intake Hose

424521

33

Breather Inlet Hose

424523

34

Screw Type Hose Clamp

280305

35

11.0 Air Cleaner Trim Seal

822515

36

Air Intake Box Mount

644069

37

Air Intake Box

644062

38

Kubota Aluminum Radiator

101616

39

Upper Aluminum Radiator Hose

101060

40

Lower Aluminum Radiator Hose

101061

41

Lower Radiator Mount

644656

42

400D/900D Grille with Guard

644670

43

Rear Belt Shield Isolator

422090

44

Swell Latch Assembly

604805

45

Upper Radiator Mount

644652

46

19.5 Upper Radiator Trim Seal

822512

47

Expansion Tank

422012

48

Tie

423154

49

Hose

821749

50

Spring Hose Clamp

280260

51

Clear Vent Hose

821748

52

Engine Mount Rail - Right

725300

53

Engine Mount Rail - Left

725301

54

Filter Minder Gauge with Mount

141012

55

O-Ring Filter Fitting

363815

56

Street Ell Fitting

363828

57

Clutch Stub Shaft

824641

58

M10 Socket Head Screw

270085

59

Spacer

902586

60

Spacer - .25 Thick

902297

61

Lock Nut

253850

62

Flange Whiz Bolt

253203

63

Hex Bolt

271121

64

400/900 Lower Radiator Seal

822506

65

Hex Bolt

243205

66

Hex Whiz Bolt

253175

67

Hex Whiz Bolt

253173

68

Whiz Nut

253025

69

Radiator Grille Trim

822636

70

Exhaust Flange Gasket

KU1421

71

Washer

257020

72

Rubber Bumper

424033

73

M6 Socket Head Screw

270065

74

Side Shield

721197

75

Radiator Trim Seal

822522

76

900 Series Exhaust Pipe

101384
