930D2 • Tractor Assembly

2012

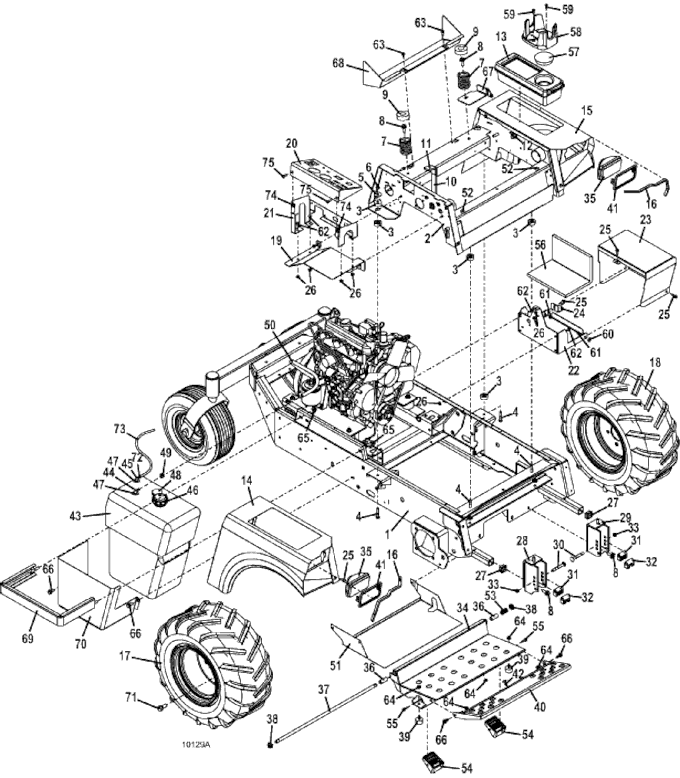

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 Frame- Lower Front Ports

644285

2

900 Low Profile Upper Frame

643886

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603859

-

Throttle Control Cable Assembly

323675

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

Right 700/900 Fender with Safety Decal

693220

-

930D Trim Decal - Right

163796

15

Left 700/900 Fender with Safety Decal

693221

-

930D Trim Decal - Left

163797

16

Trim

822632

17

Wheel & Bar Tread Tire 22 x 11 x 10 - Right

483942

-

Turf Tire Only, 10"

482473

-

Bar Tread Tire Only, 10"

482483

-

5 Bolt Wheel Only, 10"

483420

-

Wheel & Turf Tire, 10"

483946

18

Wheel & Bar Tread Tire 22 x 11 x 10 - Left

483943

-

Turf Tire Only, 10"

482473

-

OTR Turf Tire 22 x 11 x 10

482477

-

Bar Tread Tire Only, 10"

482483

-

5 Bolt Wheel Only, 10"

483420

-

Wheel & Turf Tire, 10"

483946

19

Console Mount

645050

20

Console for Liquid-Cooled Diesel, with Decal

693109

21

Console Mount Frame

722876

22

Battery Box w/o Draw Latch

644163

23

Battery Box Lid w/o Draw Latch

644478

24

Battery Hold Down Bracket

754135

25

Hex Whiz Bolt

253175

26

Whiz Nut

253025

27

Square Plastic Plug

422065

28

QD 700/900 Deck Mount - Right

643092

29

QD 700/900 Deck Mount - Left

643093

30

Special Carriage Bolt

247280

31

Deck Mount Bushing

282575

32

Floating Deck Mount Bushing

282576

33

Nylon Insert Nut

253460

34

Adjustable Foot Platform Assembly - 700/900

604346

35

Halogen Flood Worklamp

182250

36

Nylon Bearing

422615

37

Foot Platform Pivot Rod - 700

780673

38

Nylon Insert Nut

253470

39

Rubber Bumper

424052

40

Foot Platform Extension - 700

643304

41

Snap Mount Worklamp Bezel

182251

42

Carriage Bolt

247130

43

8 Gallon Diesel Fuel Tank Assembly

604846

44

Fuel Tube

363930

45

Fuel Tube

363924

46

Screw-on Diesel Fuel Cap

100211

47

Grommet

101875

48

In-Tank Fuel Gauge

141144

-

Grommet

424275

49

Spring Hose Clamp

280261

50

928D Fuel Line

821716

51

Trash Shield - G2

721383

52

Rubber Bumper

424015

53

Compression Spring

283312

54

Footrest Isolator Block

424100

55

Hex Bolt

243026

56

Battery Tray Pad

427278

57

Cup Hole Plug

422066

58

Cup Holder

150225

59

Cap Screw

259030

-

Nut

254436

60

Washer

257020

61

Nylon Insert Nut

253440

62

Truss Whiz Bolt

253176

63

Hex Whiz Bolt

253173

64

Whiz Nut

253035

65

Whiz Nut

253043

66

Hex Flange Whiz Bolt

253192

67

Brake Pin Reinforcement

729230

68

928D I-Coupler Shield

722765

69

8 Gallon Fuel Tank Mount

644826

70

8 Gallon Tank Shield

723339

71

Lug Bolt

248565

72

Spring Hose Clamp

280257

73

300S Fuel Line Return Hose

821741

74

Plastic Retainer Nut

254432

75

Bolt

253180

78

930D Decal Set

605550
