Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

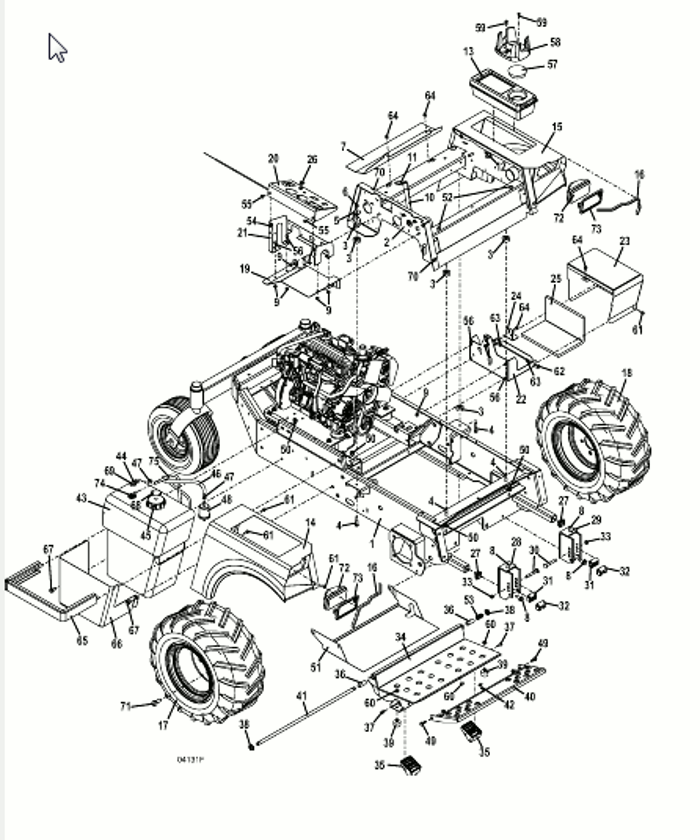

932G2 • Tractor Assembly

2012

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 Front Ports Lower Frame

644285

2

900 Low Profile Upper Frame

643886

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

2005 932 I-Coupler Shield

722779

8

Flange Whiz Bolt

253203

9

Whiz Nut

253025

10

932 Throttle Assembly includes Cable Assembly
(NOTE: This item is non-returnable.)

603834

-

Throttle Cable

323648

-

Throttle Stop Lever

722009

-

Heavy Duty Throttle Stop

722736

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

right 700/900 Fender with Safety Decal

693220

15

left 700/900 Fender with Safety Decal

693221

16

Trim

822632

17

22 x 11 x 10 right Wheel & Tire with Bar Tread

483942

18

22 x 11 x 10 left Wheel & Tire

483943

-

20 x 10 x 10 Turf Tire

482473

-

22 x 11 x 10 Tire with Bar Tread

482483

-

10 x 8.5 5-Bolt Wheel

483420

-

22 x 10 x 10 / 22 x 11 x 10 Wheel & Turf Tire

483946

19

Console Mount

645050

20

Console with Decals for Liquid-Cooled Gas Models

693108

21

Console Mount Frame

722876

22

Battery Box without Draw Latch

644163

23

Battery Box Lid without Latch

644478

24

Battery Hold-Down Bracket

754135

25

Battery Tray Pad

427278

26

Mechanical Choke

142232

27

1" (internal dimensions) Square Plastic Plug

422065

28

right 700/900 Quick Disconnect Deck Mount

643092

29

left 700/900 Quick Disconnect Deck Mount

643093

30

Special Carriage Bolt

247280

31

Deck Mount Bushing

282575

32

Floating Deck Mount Bushing

282576

33

Nylon Insert Nut

253460

34

700/900 Adjustable Foot Platform Assembly
(includes items 35, 36, 54, & 55)

604346

35

Footrest Isolator Block

424100

36

Nylon Bearing

422615

37

Hex Bolt

243026

38

Nylon Insert Nut

253470

39

Rubber Bumper

424052

40

Series 700 Foot Platform Extension

643304

41

700 Foot Platform Pivot Rod

780673

42

Carriage Bolt

247130

43

8 Gallon Gas Tank Assembly with .312 Barbed Fitting

605796

44

Fuel Tube

363930

45

Internal Sealed Tether Fuel Cap

100212

46

Fuel Line Hose

821716

47

Spring Hose Clamp

280261

48

Kubota Fuel Pre-filter

101005

49

Hex Flange Whiz Bolt

253192

50

Whiz Nut

253043

51

G2 Trash Shield

721383

52

Rubber Bumper

424015

53

Compression Spring

283312

54

Plastic Retainer Nut

254432

55

Bolt

253180

56

Truss Whiz Bolt

253176

57

Cup Hole Plug

422066

58

Cup Holder

150225

59

Cap Screw

259030

-

Nut

254436

60

Whiz Nut

253035

61

Hex Whiz Bolt

253175

62

Washer

257020

63

Nylon Insert Nut

253440

64

Hex Whiz Bolt

253173

65

8 gallon Tank Mount

644826

66

8 gallon Tank Shield

723339

67

Whiz Bolt

253200

68

Fuel Intake Gauge

141144

-

Grommet

424275

69

Fuel Tube Bushing

101875

70

Speed Nut

254431

71

Lug Bolt

248565

72

Halogen Flood Worklamp

182250

73

Snap Mount Worklamp Bezel

182251

74

Fuel Tank Valve 2011

100216

75

Fuel Vapor Hose

821759

76

932G2 Decal Set

605551
