Genuine OEM Grasshopper® Mower Parts Diagrams

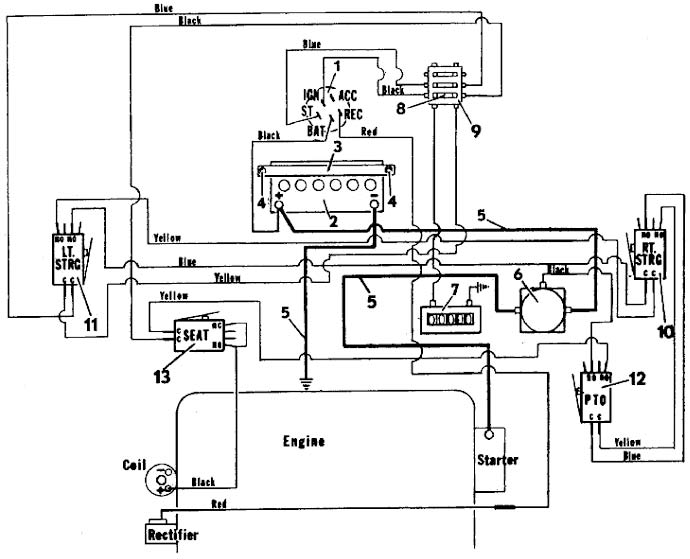

1210 • Electrical Wiring
1985
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kohler Key Switch |
183805 |
2 |
12 Volt Wet Battery |
180125 |
3 |
Battery Hold Down |
822410 |
4 |
Hook Bolt |
240110 |
5 |
20 Inch Red Battery Cable |
180319 |
- |
Starter Terminal Boot |
425219 |
6 |
Solenoid Switch 3-Post Relay |
184250 |
7 |
Snap-In Hour Meter |
141551 |
- |
Hour Meter Mounting Bracket |
722060 |
8 |
6 Amp Fuse |
181540 |
9 |
Fuse Block |
603135 |
10 |
Lever Safety Switch |
183865 |
- |
Right Switch Mount |
722020 |
11 |
Lever Safety Switch |
183865 |
- |
Left Switch Mount |
722021 |
12 |
Lever Safety Switch |
183865 |
13 |
Lever Safety Switch |
183865 |
14 |
1210 Mower Ignition Wire Group |
603880 |
15 |
Control Panel Decal |
161140 |
