Genuine OEM Grasshopper Lawn Mower Parts

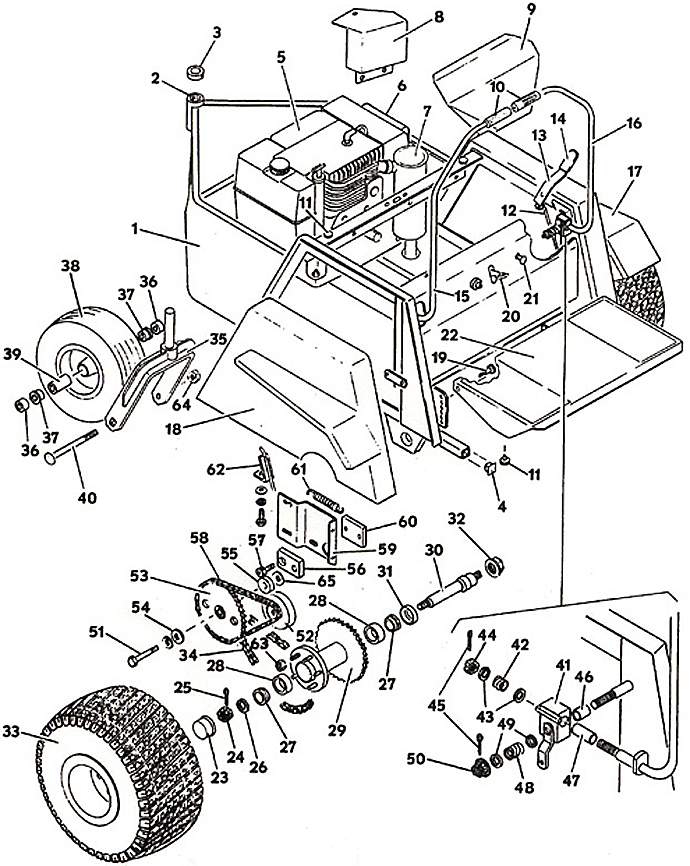

Genuine OEM Grasshopper® Mower Parts Diagrams

1212 • Tractor Assembly

1988

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Tractor Frame

643381

2

Needle Bearing

121590

3

Set Collar

280440

4

Plug

422065

5

12 hp Kohler Engine

100111

6

Kohler Air Filter

100910

-

Kohler Air Filter Pre Cleaner

100915

7

Kohler Muffler

101200

8

Air Deflector Shield

643746

9

Muffler Heat Shield

643757

10

Handle Grip

422160

11

Rubber Bumper

424015

12

Brake Linkage Rod

730305

13

Brake Band Lever

643518

14

Handle Grip

422150

15

Right Steering Lever

643534

16

Left Steering Lever

643535

17

Left Extended Fender

643341

18

Right Extended Fender

643340

19

Bolt

259741

20

Mechanical Throttle

142311

21

Choke

142225

22

Foot Rest

643710

23

Dust Cap

481432

24

Nut

254502

25

Cotter Pin

260670

26

Washer

257091

27

Tapered Bearing

122522

28

Bearing Cup

123522

29

Hub Assembly

603427

30

Tapered Mount Axle

883155

31

Seal

125525

32

Flange-Top Lock Nut

253100

33

Wheel & Tire - 16 x 7.5 x 8

483899

-

Tire - 16 x 7.5 x 8

482400

-

Wheel - 8 x 5.375

483400

34

Chain

385288

-

Connecting Link

388010

35

Solid Shank Rear Fork

643368

36

Axle Spacer

902425

37

Ball Bearing

120050

38

Wheel & Tire with Bearings & Spacer - 13 x 5 x 6

483861

-

Tubeless Ribbed Tire - 13 x 5 x 6

482350

-

Wheel with Bearings & Spacer - 6 x 3.25

483301

39

Rear Wheel Bearing Spacer

902475

40

Carriage Bolt

247725

41

Right Steering Lever Pivot

643643

-

Left Steering Lever Pivot

643644

42

Compression Spring

283324

43

Washer

257064

44

Nut

253470

45

Cotter Pin

260654

46

Nylon Bearing

422560

47

Nylon Bearing

422580

48

Compression Spring

283381

49

Washer

257067

50

Nut

830355

51

Hex Bolt

245230

52

Sprocket & Drum Assembly

417515

53

Sprocket w/Bearing

603800

-

Bearing Assembly

603115

54

Washer

774019

55

Spacer

902292

56

Cluster Sprocket Mount Block

783831

57

Socket Head Screw

259636

58

Chain

385264

59

Right Drive Mount

643588

-

Left Drive Mount

643587

60

Plate

824615

61

Extension Spring

283821

62

Spring Tensioner Bracket

824512

63

Lug Nut

254472

64

Lock Nut

253970

65

Sprocket Washer

770010

66

1212 Decal Set

603262
