Genuine OEM Grasshopper® Mower Parts Diagrams

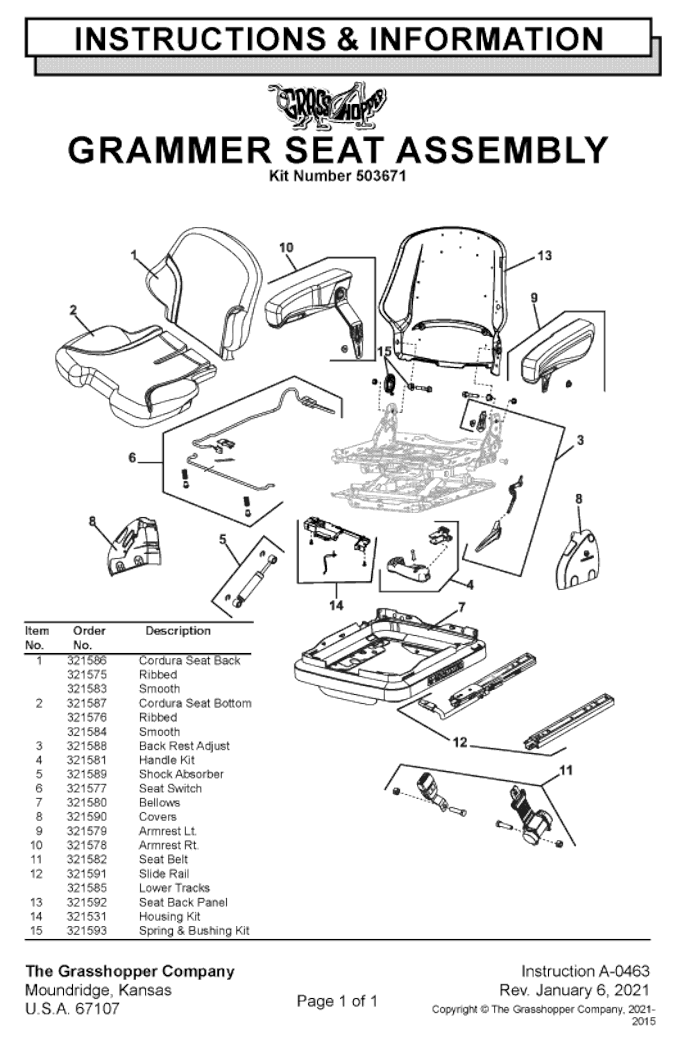

Grammer Premier Seat
Parts Breakdown
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Grasshopper Cordura Back Cushion |
321586 |
- |
Grammer Back Cushion |
321575 |
- |
Grammer Back Cushion |
321583 |
2 |
Cordura Grammer Seat Cushion |
321587 |
- |
Grammer Seat Cushion |
321576 |
- |
Grammer Seat Cushion |
321584 |
3 |
Grammer Back Rest Adjust Kit |
321588 |
4 |
Grammer Seat Handle Kit |
321581 |
5 |
Seat Shock Absorber |
321589 |
6 |
Grammer Seat Switch |
321577 |
7 |
Grammer Seat Bellows |
321580 |
8 |
Covers |
321590 |
9 |
Grammer Left Armrest |
321579 |
10 |
Grammer Right Armrest |
321578 |
11 |
Grammer Seatbelt |
321582 |
12 |
Slide Rail Kit |
321591 |
- |
Grammer Lower Adjust Slide |
321585 |
13 |
Backrest Kit |
321592 |
14 |
Grammer Housing Kit |
321531 |
15 |
Spring & Bushing Kit |
321593 |
16 |
Grammer Seat Assembly (SEAT ONLY)
(a seatpan is needed if replacing regular seat) |
503671 |
