Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

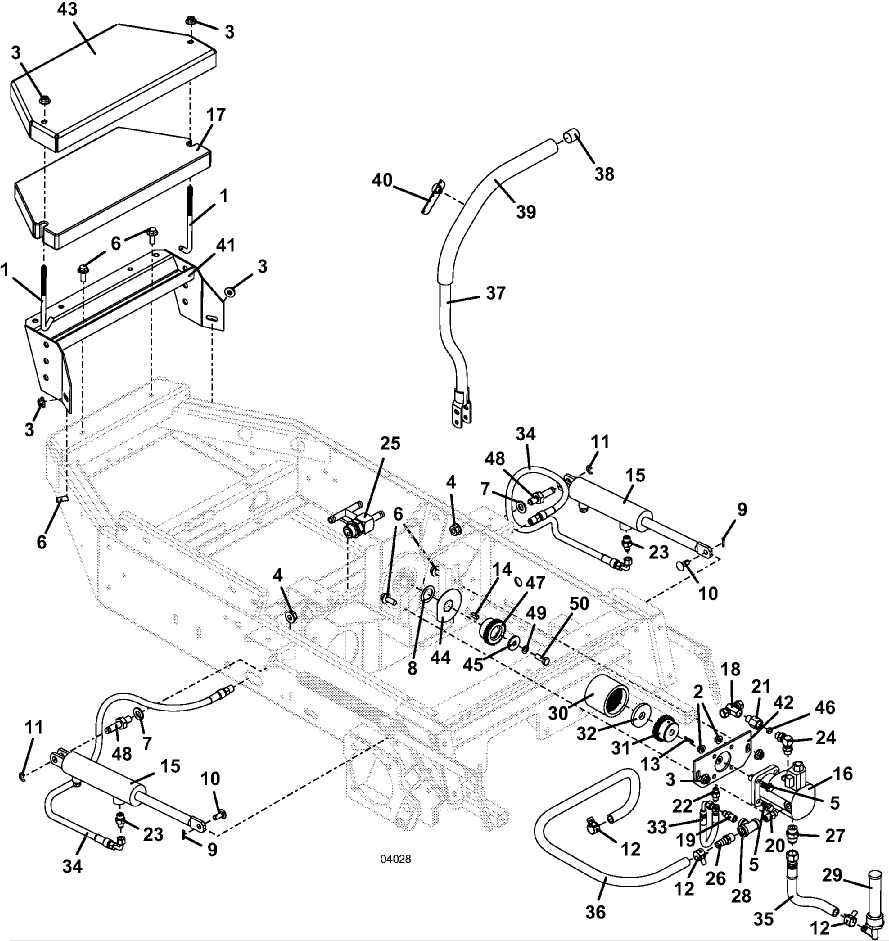

700G2 • Hydraulic Lift Assembly
serial numbers 5300000 through 5517202

click here for super-size image

Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hook Bolt

240151

2

Whiz Nut

253035

3

Whiz Nut

253043

4

Whiz Nut

253066

5

Hex Flange Whiz Bolt

253192

6

Flange Whiz Bolt

253203

7

Washer

257062

8

Washer

257106

9

Cotter Pin

260648

10

Clevis Pin

261339

11

External Retainer

263500

12

Spring Hose Clamp

280265

13

Square Key

281540

14

Square Key

281580

15

Hydraulic Cylinder

290021

16

Counterclockwise Hydraulic Pump with Solenoid Valve

290074

-

Hydraulic Solenoid Valve

144950

17

750 Counterweight

323951

18

Swivel Tee Adapter

360005

19

Fitting Adapter

360012

20

O-Ring Adapter

360040

21

O-Ring Adapter

360045

22

O-Ring Adapter

360050

23

O-Ring Adapter

360052

24

90 degree O-Ring Adapter

360055

25

3 Beaded O-Ring Adapter

360075

26

Brass Hose Insert

360260

27

Steel Boss O-Ring Fitting

363832

28

Reducer Tee

366115

29

Strainer

366557

30

Nylon Coupler Sleeve

388560

31

Coupler Hub

388576

32

Coupling Stabilizer

424150

33

Hose Assembly

424302

34

Hose Assembly

424310

35

Hose Assembly

424339

36

.5 Hydraulic Hose

821806

37

Wide Std. Steering Lever Assembly with Switch

604779

38

.75 inch ID Vinyl Cap

422095

39

Handle Grip

422179

40

Sealed Dome Switch

183940

-

Hydraulic Lift Switch/Mount Assembly

604799

41

Weight Mount

643915

42

Pump Mount Plate

725326

43

50 lb. Weight Cover

729691

44

Washer

77045

45

Washer

774020

46

Flow Restrictor

780507

47

Lower Flex Coupler

831039

48

Cylinder Mount Pin with Groove

887119

49

Lock Washer

257412

50

Hex Bolt

243331
