Gemini • Hydraulic Lift Wiring
serial numbers 498738 through 5499999

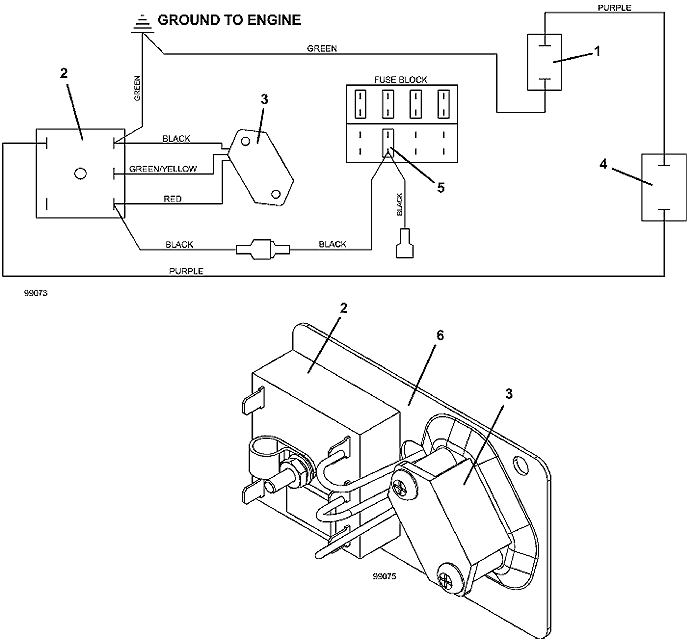

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Valve Solenoid

144950

2

Delay Timer

143374

3

Tilt Switch Assembly

183700

3

Sealed Dome Switch

183940

-

Momentary Toggle

183954

5

Auto ATC Fuse - 7.50

181460

6

Tilt Switch Magnetic Mount

722080
