Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

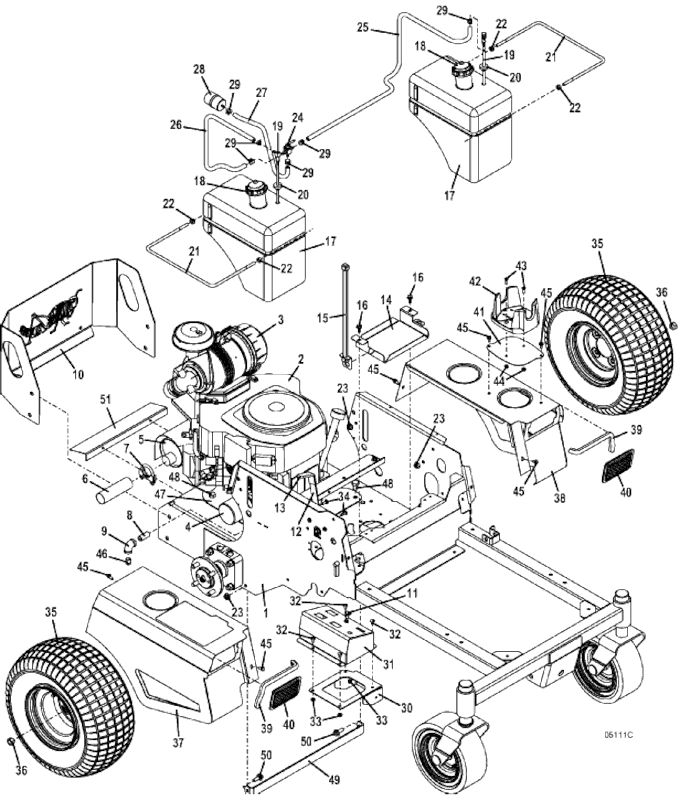

120K • Tractor Assembly M248

2010-5

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M248 Frame

644408

2

20hp Kohler Vertical HD Cleaner Engine

100152

3

HD Outer Air Filter

100936

-

HD Inner Air Filter

100937

4

Kohler Oil Filter

100802

5

Muffler for 20hp Kohler Vertical Engine

101221

-

Kohler Exhaust Gasket

101041

6

M2 Exhaust Pipe

942400

7

Exhaust Clamp

101356

8

Nipple

364508

9

Ell

362215

10

M2 Rear Shield

724674

11

Mechanical Choke

142250

12

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

13

Handle Grip

422150

14

Battery Box

723230

15

Battery Hold Down Strap

604785

16

Hex Flange Whiz Bolt

253192

17

M2 3 Gallon Tank Assembly

604807

18

Fuel Cap

100210

19

Fuel Tube

363925

20

Grommet

101875

21

100 Gas Tank Mount Rod

730451

22

Nut

254450

23

Whiz Nut

253043

24

Single Fuel Reserve Valve

143641

25

Fuel Hose

821771

26

Fuel Hose

821738

27

Fuel Hose

821737

28

Kohler Fuel Filter

101001

29

Spring Hose Clamp

280260

30

100 Console Bracket

644410

31

M2/200V Console

645102

32

Truss Whiz Bolt

253176

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

4-Bolt Wheel & Turf Tire 18 x 9.5 x 8

483906

-

Turf Tire 18 x 9.5 x 8

482453

-

Knobby Tire 18 x 9.5 x 8

482457

-

Tire Bar

482458

-

Wheel

483399

-

Wheel & Turf Tire

483907

-

Right Wheel & Tire Bar

483908

-

Left Wheel & Tire Bar

483909

36

Lug Nut

254472

37

Right 100S Fender

644435

38

Left 100S Fender

644436

39

Fender Edge Trim

822631

40

Work Lamp Hole Plug

422079

41

M2 Reservoir Access Panel

722804

42

Cup Holder

150225

43

Cap Screw

259030

44

Nut

254436

45

Hex Whiz Bolt

253173

46

Metal Pipe Plug

365515

47

M2 Doubler Frame

725479

48

Hex Bolt

243551

-

Whiz Nut

253066

49

M2 120 Tension Strap

732514

50

Flange Whiz Bolt

253203

51

120 Heat Shield

722974

52

120/48 120K/48 Decal Set

605324
