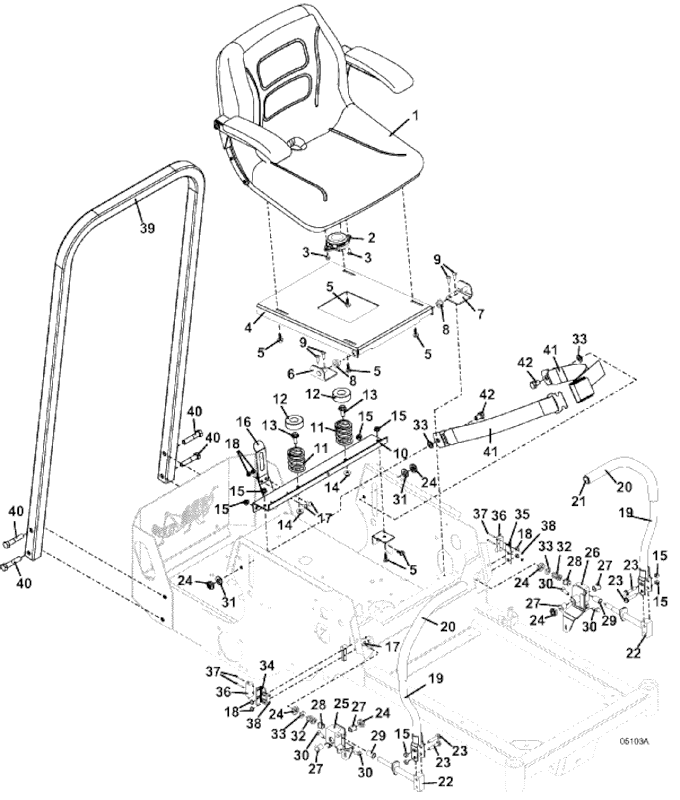

124 • Seat & Steering Assembly - M2/41 & M2/48

2011

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Molded Seat Assembly with Armrests

321570

2

Seat Switch

183870

3

Hex Whiz Bolt

253173

4

M252 Seat Pan

729410

5

Hex Flange Whiz Bolt

253192

6

Seat Pivot Bracket

644401

7

Seat Pivot Bracket

644402

8

Sleeve Bearing with Flange

422565

9

Truss Whiz Bolt

253177

10

Rear M2 Frame Crossmember

724655

11

Compression Spring

283516

12

Seat Spring Cap

422127

13

Flange Whiz Bolt

253203

14

Whiz Nut

253043

15

Whiz Nut

253035

16

Seat Latch

284210

17

Whiz Truss Bolt

253176

18

Whiz Nut

253025

19

M2 Steering Lever Assembly

605745

20

Handle Grip

422179

21

.75 ID Vinyl Cap

422095

22

Adjustable Steering Lever Mount

643926

23

Hex Flange Whiz Bolt

253195

24

Nylon Insert Nut

253470

25

right M2 Steering Pivot with Stop & Bearings

604813

26

left M2 Steering Pivot with Stop & Bearings

604814

27

Sleeve Bearing with Flange

422559

28

Sleeve Bearing with Flange

422556

29

Sleeve Bearing

422557

30

Hex Bolt

243197

31

Washer

257062

32

Compression Spring

283324

33

Washer

257063

34

right Steering Switch Mount

720160

35

left Steering Switch Mount

720161

36

Lever Switch

183860

37

Machine Screw

250318

38

Nut

254400

39

M2 OPS (Operator Protective Structure) Tube

324101

40

Hex Bolt

243591

-

Lock Nut

253930

41

Non-retractable Seat Belt

324200

42

Hex Bolt

243551
