Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

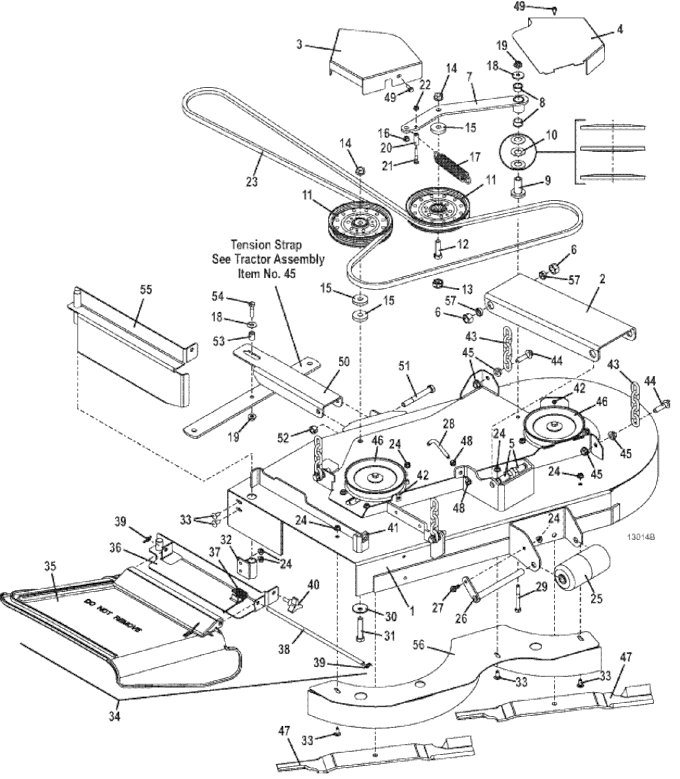

124 • Deck Assembly for 41" Decks

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

124/41 Deck

645187

2

Radius Arm

776219

3

Shield

751038

4

Shield

751039

5

Hex Bolt

243795

6

Lock Nut

253970

7

Idler Arm

824463

8

Oilite Bearing

121756

9

Pedestal Bearing

121651

10

Spring Washer

257319

11

Idler

393250

12

Hex Bolt

243575

13

Idler Arm Stabilizer Cap

423670

14

Flange Spiral Lock Nut

253067

15

Washer

257160

16

Nylon Bearing

422520

17

Extension Spring

283824

-

Extension Spring

283848

18

Washer

257040

19

Whiz Nut

253043

20

Guide Tube

784057

21

Hex Bolt

243040

22

Whiz Nut

253025

23

Belt

382074

24

Whiz Nut

253035

25

2-Piece Center Roller Assembly

603725

26

Roller Lock Pin

644512

27

Hex Flange Whiz Bolt

253192

28

"J" Bolt Idler Adjustment

730391

29

Hex Bolt

243365

30

Washer

257059

31

Hex Bolt

243590

32

Vac Housing Pivot Mount

643632

33

Carriage Bolt

247130

34

M241 Flex Discharge Shield Assembly

604316

35

Flex Discharge Shield

422043

36

Discharge Shield Mount

644570

37

Torsion Spring

284406

38

Flex Discharge Shield Pin

780650

39

Cotter Ring

260608

40

3-Prong Head Deck Stud (Knob)

252821

41

Speed Nut

254448

42

Speed Nut

254431

43

M1 5 Link Chain

820331

44

GR 8 Hex Bolt

243458

45

Whiz Nut

253058

46

Sheave

415906

47

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" H-Low Mulch Blade

320247

-

21" High Lift Notch Laser Edge Blade

320318

-

21" Shredder Blade

320322

48

Nut

254450

49

Hex Whiz Bolt

253175

50

Stabilizer

725670

51

Hex Bolt

243620

52

Lock Nut

253930

53

Spacer

902283

54

Hex Bolt

243340

55

M2 41 Mulch End Cap

644407

56

M2 41 Mulch Plate

644607

57

Axle Spacer

902422
