Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

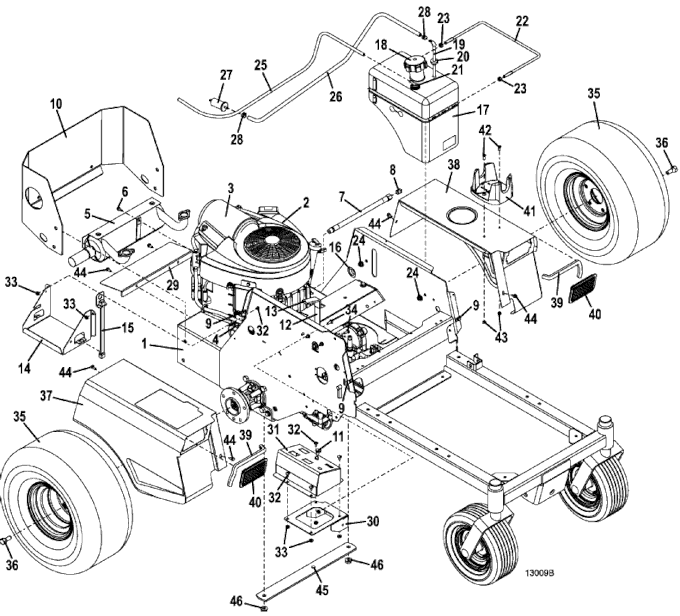

124 • Tractor Assembly for 41" Decks

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Frame

645377

2

24hp Briggs & Stratton ELS Vertical Engine

100151

3

Cyclonic Air Filter

100919

4

Briggs Oil Filter

100803

5

Muffler for 20/24hp Briggs & Stratton Vertical Engine

101197

-

Muffler Exhaust Gasket for Briggs & Stratton Vertical Engine

101043

6

Hex Bolt

243016

7

Drain Hose Assembly

424319

8

Metal Pipe Plug

365515

9

Speed Nut

254431

10

Shield

729743

11

Mechanical Choke

142250

12

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Heavy Duty Throttle Stop

722736

13

Handle Grip

422150

14

126 Battery Mount

723062

15

Battery Hold Down Strap

604785

16

Grommet

424250

17

M2 3x.25 Gas Tank Assembly

605791

18

Internal Sealed Tether Fuel Cap

100212

19

Fuel Tube

363925

20

Grommet

101875

21

Fuel Tank Valve Kit

606830

22

Gas Tank Rod Mount - 100

730451

23

Nut

254450

24

Whiz Nut

253043

25

Fuel Vapor Hose

821760

26

Fuel Hose

821768

27

Briggs In-Line Fuel Filter

366560

28

Spring Hose Clamp

280260

29

Heat Shield

751043

30

100 Console Bracket

644410

31

M2/200V Console

645102

32

Truss Whiz Bolt

253176

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

Wheel & Turf Tire 20 x 10 x 8

483921

-

Turf Tire 20 x 10 x 8

482472

-

Wheel

483410

36

Lug Bolt

248565

37

126 Right Fender

645238

38

126 Left Fender

645239

39

Seat Edge Trim

822630

40

Work Lamp Hole Plug

422079

41

Cup Holder

150225

42

Cap Screw

259030

43

Nut

254436

44

Hex Whiz Bolt

253173

45

Tension Strap

782899

46

Flange Spiral Lock Nut

253067

-

Hex Bolt

243565

47

Decal Set - 124/41D

605369
