Genuine OEM Grasshopper® Mower Parts Diagrams

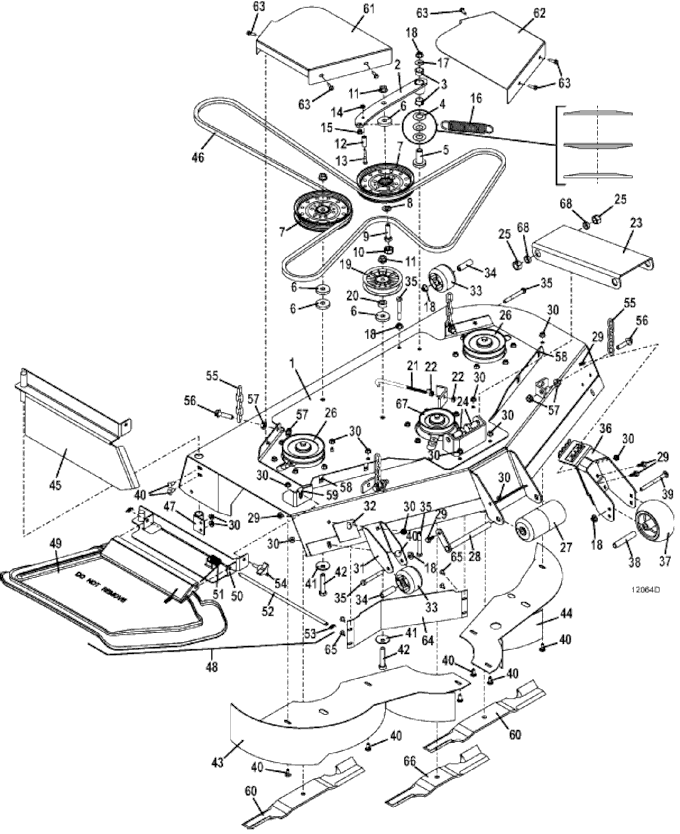

124 • Deck Assembly for 48" Deep Decks

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

124/48 Deck

645188

2

100/41 & 100/48 Idler Arm Assembly

824483

3

Oilite Bearing

121756

4

Spring Washer

257319

5

Pedestal Bearing

121651

6

Washer

257160

7

Idler

393250

8

Washer

257062

9

Hex Bolt

243575

10

Idler Arm Stabilizer Cap

423670

11

Flange Spiral Lock Nut

253067

12

Tube Guide

784057

13

Hex Bolt

243038

14

Whiz Nut

253025

15

Nylon Bearing

422520

16

Extension Spring

283824

-

Extension Spring

283848

17

Washer

257040

18

Whiz Nut

253043

19

Idler

393225

20

Spacer

902313

21

"J" Bolt Idler Adjustment

730391

-

Hook Bolt

240151

22

Nut

254450

23

Radius Arm

776214

24

Hex Bolt

243795

25

Lock Nut

253970

26

Big Split Sheave

415902

27

2 Piece Center Roller Assembly

603725

28

Roller Lock Pin

644512

29

Flange Whiz Hex Bolt

253192

30

Whiz Nut

253035

31

M1/M248 Right Formed Roller Mount

754203

32

Roller Spacer

776231

33

Roller

426122

34

Roller Mount Spacer

902284

35

Hex Bolt

243365

36

Left Anti-Scalp Roller Mount

645589

37

Anti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Carriage Bolt

247130

41

Washer

257059

42

Hex Bolt

243590

43

M1/48-D Right Mulch Plate

645600

44

M1/48-D Left Mulch Plate

645601

45

Mulch End Cap

644058

46

Belt

382108

47

Pivot Vac Housing Mount

643632

48

Flex Discharge Shield Assembly

604317

49

Flex Discharge Shield

422042

50

Discharge Shield Mount

644570

51

Torsion Spring

284406

52

Flex Discharge Shield Pin

780650

53

Cotter Ring

260608

54

3 Prong Deck Screw

252821

55

M1 5 Links Chain

820331

56

Grade 8 Hex Bolt

243458

57

Whiz Nut

253058

58

Speed Nut

254431

59

Speed Nut

254448

60

18" High Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" Hi-Low Mulch Blade

320240

-

18" Hi-Lift Notch Laser Edge Blade

320317

-

18" Shredder Blade

320321

61

124/48 Right Belt Shield

751044

62

124/48 Left Belt Shield

751045

63

Hex Whiz Bolt

253175

64

Auxiliary Front Shroud

724588

65

Truss Whiz Bolt

253176

66

15" High Lift Notch Blade

320234

-

15" Medium Lift Blade

320231

-

15" Contour Blade

320233

-

15" Hi-Low Mulch Blade

320235

67

Sheave

415870

68

Axle Spacer

902422
