Genuine OEM Grasshopper Lawn Mower Parts

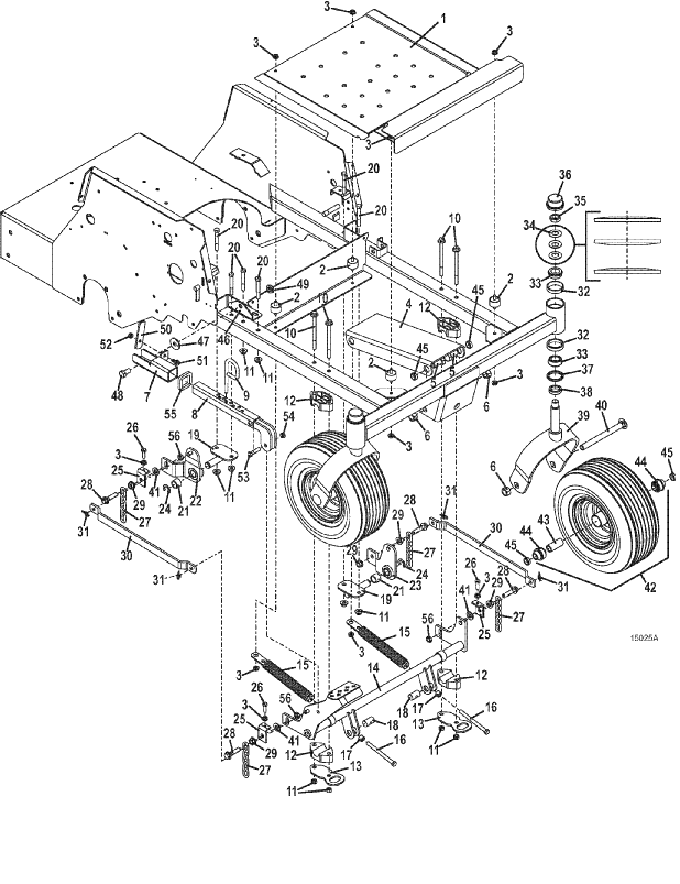

Genuine OEM Grasshopper® Mower Parts Diagrams

125 • Deck Carrier Linkage

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Footrest

645318

2

Vibration Isolator

424074

3

Whiz Nut

253035

4

100V/61 Radius Arm Assembly

776218

-

100V/48-52 Radius Arm Assembly

776214

5

Hex Bolt

243795

6

Lock Nut

253970

7

Latch Tube Guide

645274

8

Height Adjust Tube

645845

9

Height Adjust Deck Pin

730434

10

Flange Bolt

253215

11

Whiz Nut

253043

12

M1 Bearing Block

423643

13

Lift Bearing Plate

774064

14

Front Carrier Pivot

645650

15

Spring & Plug Nut Assembly

604513

16

Hex Bolt

243395

17

Spacer

902280

18

Spring Mount Shaft

881154

19

M2 Carrier Pivot

644644

20

Hex Bolt

243360

21

M2 Carrier Spacer

902412

22

Rocker Assembly

603741

-

Oilite Bearing

121764

23

M1 left Carrier Rocker Assembly

603728

-

Oilite Bearing

121764

24

External Retainer

263529

25

M1 Deck Adjusting Strap

732586

26

Hex Bolt

243205

27

5 Chain Links

820331

28

GR 8 Hex Bolt

243458

29

Whiz Nut

253058

30

Deck Adjusting Strap

732811

31

Cotter Ring

260608

32

Bearing Cup

123522

33

Tapered Bearing

122522

34

Spring Washer

257320

35

Nylon-Top Jam Lock Nut

254505

36

Dust Cap

481432

37

Seal

125855

38

Spacer

282615

39

Tapered Bearing Tail Wheel Fork

645221

40

Carriage Bolt

247726

41

Washer

257051

42

13 x 6.5 x 6 Pneumatic Wheel Assembly

603975

-

13 x 6.5 x 6 Semi-Pneumatic Wheel Assembly

603976

43

Rear Axle Center Spacer

423750

44

Ball Bearing

120048

45

Axle Spacer

902422

46

126 Height Adjust Mount

729685

47

Nylon Washer

821516

48

Hex Bolt

243560

49

Nylon Insert Nut

253470

50

Deck Latch

775147

51

Flanged Hex Whiz Bolt

253192

52

Nylon Insert Nut

253450

53

Hex Bolt

243340

54

Nylon Insert Nut

253460

55

Height Adjustment Spacer

423696

56

Nut

254461

57

M1 Carrier Adj Foot Pedal

644467

58

Flange Whiz Bolt

253203

59

Washer

257040
