Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

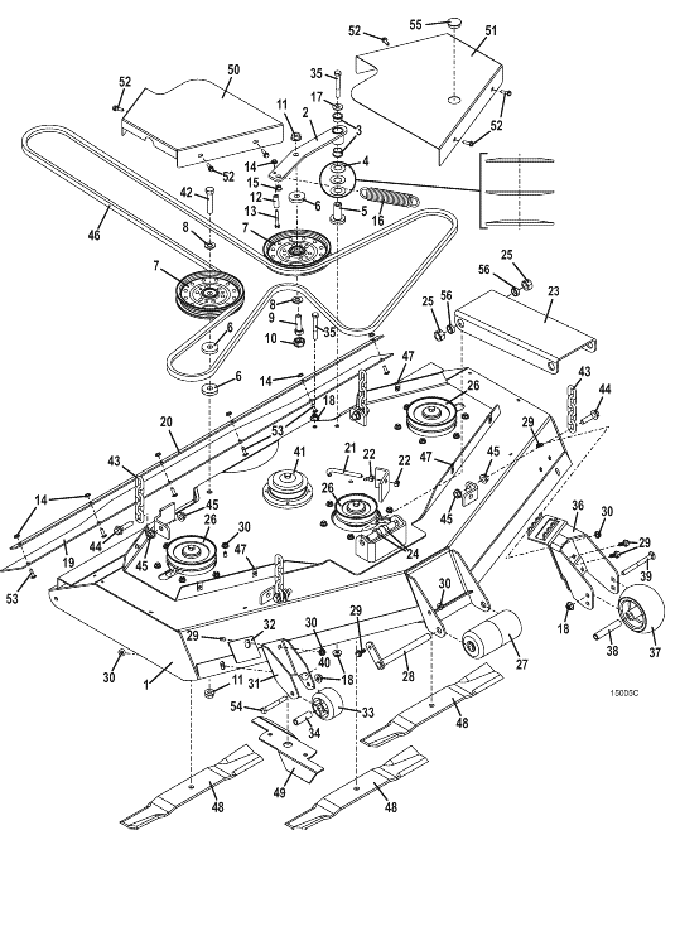

126 • Rear Discharge Deck Assembly 126/52

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100V/52R Deck

645193

2

Idler Arm Assembly

824462

3

Oilite Bearing

121756

4

Spring Washer

257319

5

Pedestal Bearing

121651

6

Washer

257160

7

Idler

393250

8

Washer

257062

9

Hex Bolt

243575

10

Idler Arm Stabilizer Cap

423670

11

Flange Spiral Lock Nut

253067

12

Guide Tube

784057

13

Hex Bolt

243038

14

Whiz Nut

253025

15

Nylon Bearing

422520

16

Extension Spring

283848

17

Washer

257040

18

Whiz Nut

253043

19

Flap Deck

424155

20

Flap Strap

782362

21

Idler Adjustment J Bolt

730391

22

Nut

254450

23

100V/48-52 Radius Arm

776214

24

Hex Bolt

243795

25

Lock Nut

253970

26

Big Split Sheave

415902

27

2-Piece Center Roller Assembly

603725

28

Roller Lock Pin

644512

29

Hex Flange Whiz Bolt

253192

30

Whiz Nut

253035

31

M1/M248 Right Formed Roller Mount

754203

32

Roller Spacer

776231

33

Roller

426122

34

Roller Mount Spacer

902284

35

Hex Bolt

243360

36

Left Anti-Scalp Roller Mount

645589

37

Snti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Carriage Bolt

247130

41

Flat Sheave

415010

42

Hex Bolt

243590

43

5 Links M1 Chain

820331

44

Hex Bolt GR 8

243458

45

Whiz Nut

253058

46

Belt

382111

47

Speed Nut

254431

48

18 Med Lift Blade

320236

49

Grassthrower

766026

50

Belt 126/52 Rt Shield

751046

51

Belt 126/52 Lt Shield

751047

52

Hex Whiz Bolt

253175

53

Truss Whiz Bolt

253177

54

Hex Bolt

243365

55

Plastic Hole Plug

422074

56

Axle Spacer

902422

Return to 126 Index Return to Top
