Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

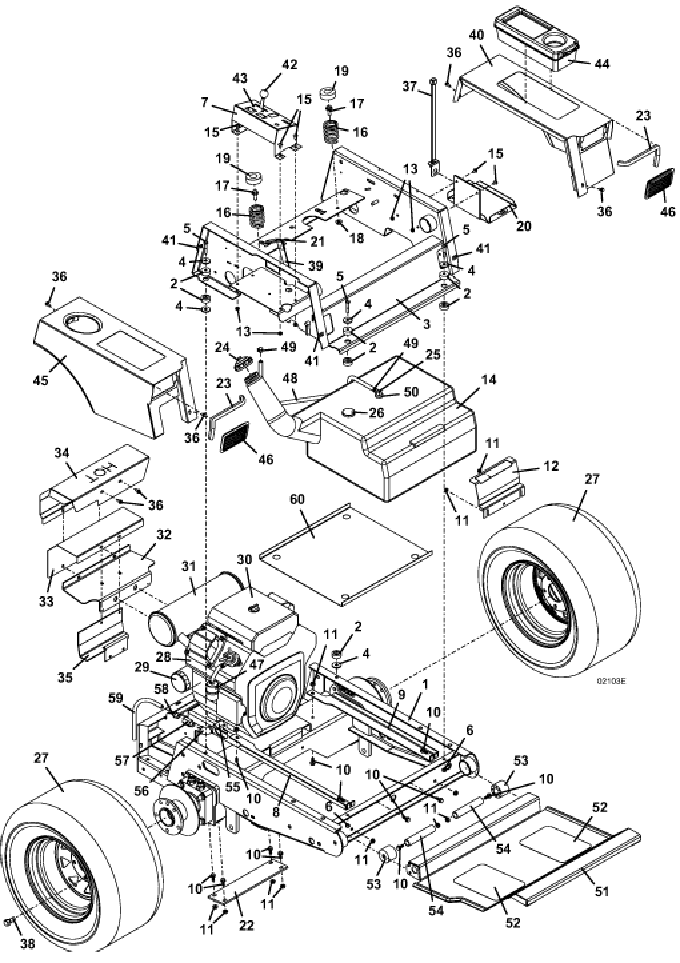

218 • Tractor Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200 M1 Front Port Frame

644280

2

Step Bushing

257037

3

200 03 Upper Frame

644279

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

M1 Console Panel

721232

8

right Tank Rail

754051

9

left Tank Rail

754052

10

Hex Flange Whiz Bolt

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722194

13

Whiz Nut

253025

14

M1 Gas Tank Assembly

604800

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Flange Whiz Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

220/225/227 Battery Box

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Fender Edge Trim

822632

24

Fuel Tank Cap

100210

25

Fuel Tube

101814

26

8.5 gal. In-Tank Fuel Gauge

141140

-

Grommet

424275

27

Turf Wheel & Tire Assembly 23 x 9.50 x 12

483955

-

Turf Tire 23 x 9.50 x 12

482488

-

Offset Wheel 12 x 7 x 5.25

483435

28

18 hp OHV Kohler Engine

100145

29

Kohler Oil Filter

100802

30

Kohler Air Filter

100928

-

20 hp Kohler Air Filter Precleaner

100929

31

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

32

225 Lower Muffler Bracket

729312

33

Inner Panel Shield

722309

34

Muffler Shield

722391

35

Shield Mount Bracket

643117

36

Hex Whiz Bolt

253173

37

Battery Hold Down Strap

604785

38

Lug Bolt

248565

39

Throttle Assembly

603856

-

Control Cable Assembly

323640

40

M1 left Snap Mount Fender

644273

-

218 left Trim Decal

163401

41

Speed Nut

254431

42

Mechanical Choke

142214

43

200 Console Panel with Decal

693115

44

Tool Box

422040

45

M1 right Snap Mount Fender

644272

-

218 right Trim Decal

163400

46

Work Lamp Hole Plug

422079

47

Kohler Fuel Filter

101001

48

Fuel Hose

821736

49

Hose Spring Clamp

280260

50

Grommet

101875

51

M1 On-Frame Foot Rest

644256

52

Foot Rest Tread

420902

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

Ell

362215

57

Oil Drain Valve

143610

58

Nylon Fitting

363854

59

Oil Drain Tube

821752

60

M1 Tank Shield

722495

61

218 Decal Set

605296
