Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

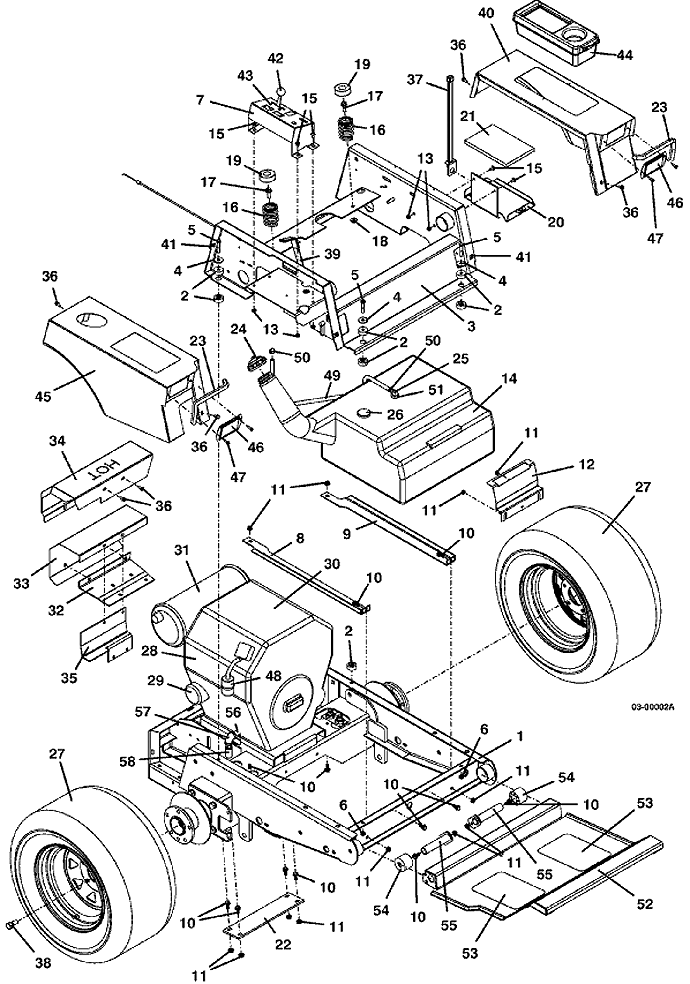

220 / 225 • Tractor Assembly

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Frame - Lower M1 200

644249

2

Rubber Step Bushing

257037

3

Frame - Top Section M1

644242

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

Console Panel M1

721232

8

Tank Rail - right

754051

9

Tank Rail - left

754052

10

Hex Flange Whiz Bolt .312-18 x .75

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722194

13

Whiz Nut .250-20

253025

14

M1 Fuel Tank Assembly (includes 24,25,26,51)

604800

15

Truss Whiz Bolt .250-.20 x .500

253176

16

Compression Spring

283516

17

Whiz Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box 220/225/227

644090

21

Battery Tray Pad U-1

427272

22

Belt Guard Strap

783277

23

Fender Edge Trim - 11.5

822632

24

Fuel Tank Cap

100210

25

Fuel Tube

101814

26

In-Tank Fuel Gauge

141140

-

Grommet - Fuel Gauge Mount

424275

27

Wheel & Tire 23 x 10.5 x 12

483960

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Turf Tire 23 x 10.5 x 12

482485

-

Wheel & Tire 24 x 12 x 12

483965

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Turf Tire 24 x 12 x 12

482486

-

12" Wheel & Tire Bar (right)

483968

-

12" Wheel & Tire Bar (left)

483969

-

Tire Only 24 x 12 x 12 AT101 Bar

482487

28

20 HP Kohler Engine

100162

-

25 HP Kohler Engine

100167

29

Kohler Oil Filter

100802

30

Kohler Air Filter

100928

-

Kohler Air Filter Assembly Element- 25 hp

100934

-

Kohler Air Filter Assembly - 25 hp

100934

-

Kohler Air Filter Precleaner - 20 hp

100929

-

Kohler Air Filter Precleaner - 25 hp

100935

31

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

32

Lower Muffler Bracket M1

729299

33

Inner Panel - Shield

722309

34

Muffler Shield

722391

35

Shield Mount Bracket

643117

36

Hex Whiz Bolt .250-20 x .500

253173

37

Battery Hold Down Strap

604785

38

Lug Bolt .500 x .875

248565

39

Throttle Assembly -200/928D/928D2

603856

-

Handle Grip

422150

-

Control Cable Assembly

323640

40

Fender - M1 left Inset Light

644261

41

Speed Nut .250-20

254431

42

Mechanical Choke 32.25 x 29.5

142214

43

Machine Screw

250168

-

Whiz Nut 10-24

253020

44

Tool Box

422040

45

Fender - M1 right Inset Light

644260

46

25 hp Kohler Air Deflector

644011

47

Screw #10

252057

48

Kohler Fuel Filter

101001

49

Fuel Line Hose (19.5" long)

821736

50

Hose Spring Clamp

280260

51

Fuel Tube Bushing

101875

52

M1 On-Frame Foot Rest

644256

-

M1 Frame-Mount Foot Rest

644228

53

Foot Rest Tread

420902

54

Seat Isolator

424095

55

Seat Hinge Pin

644618

56

Nipple

364508

57

ELL

362215

58

Hose Assembly

424319

-

Decal Set - 220 Mower

604303

-

Decal Set - 225 Mower

604304
