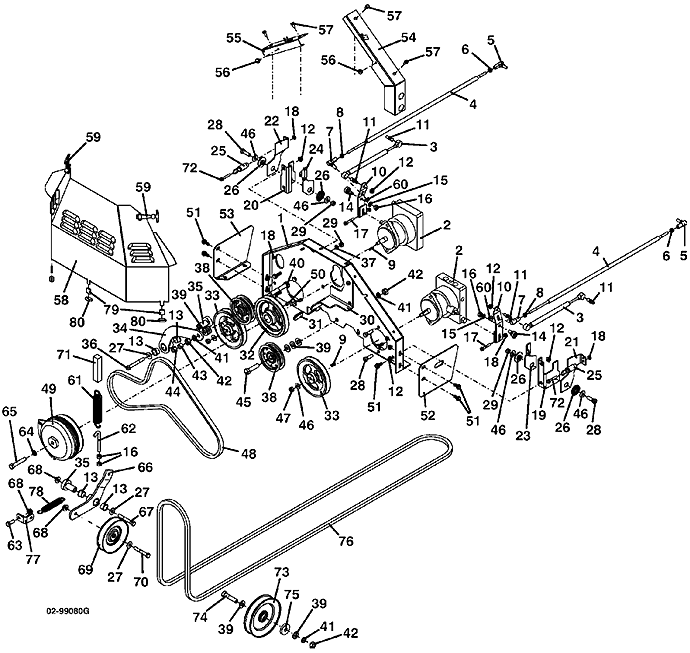

Genuine OEM Grasshopper® Mower Parts Diagrams

220 • Drive Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Mount M1 W/A

644631

2

Hydro Pump - 10L

391455

3

Damper

285031

4

Steering Linkage - M1 200

604525

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Key .125 x .187 x .750

281562

10

Control Arm - Air Cooled

754020

11

Ball Stud

265680

12

Whiz Nut

253035

13

Oilite Bearing .754 x .878 x .50

121756

14

Eccentric Roller Assembly

603726

15

Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

Neutral Return Mount - right

729227

20

Neutral Return Mount - left

729228

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

7729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257040

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Anti Rotation Bracket M1

755125

31

Clutch Bracket Cover

422088

32

Sheave

415888

33

Sheave

415880

34

Idler Arm - M1 Pumps F/A

824485

35

Pedestal Bearing .750 x 1.5

121650

36

Hex Bolt .375-16 x 3

243365

37

Lock Washer

257412

38

Idler Pulley

393195

39

Washer

257062

40

Full Thread Hex Bolt .500-13 x 3 GR 5

243601

41

Lock Washer

257432

42

Nut .500-13

254470

43

Nylon Bearing

422558

44

Lock Nut .500-13

253930

45

Hex Bolt .500-13 x 2

243580

46

Washer

257030

47

Nut .375-24

254452

48

Belt

382036

49

Electric Clutch

388740

50

Square Key .250 x .875

281582

51

Hex Flange Whiz Bolt .312-18 x .75

253192

52

right Pump Plate Gusset

754043

53

left Pump Plate Gusset

754044

54

right Sheield Channel

722179

55

left Shield Channel

722148

56

Rubber Bumper

424015

57

Hex Whiz Bolt .250-20 x .500

253173

58

Rear Shield Assembly - M1

604753

59

Rubber Draw Latch

281301

60

Whiz Nut .312-24

253038

61

Extension Spring

283848

62

Idler Adjustment J Bolt

730391

63

Hex Bolt .375-16 x 1

243330

64

Lock Washer

257422

65

Hex Bolt .437-20 x 2.5

243470

66

Mule Drive Idler Arm

824486

67

Hex Bolt .375-16 x 2.750

243360

68

Whiz Nut .375-16

253043

69

Idler

393376

70

Hex Bolt .375-16 x 2.500

243355

71

Idler Spring Damper

425650

72

Hex Bolt .250-20 x 1.500

243035

73

Idler Pulley

393390

74

Hex Bolt .500-13 x 2.250

243585

75

Retainer Washer .531 x 1.625

883804

76

Belt

382085

77

Idler Spring Bracket M1

732520

78

Extension Spring with Swivel

283820

79

Rear Belt Shield Isolator

422090

80

O Ring

425492
