Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

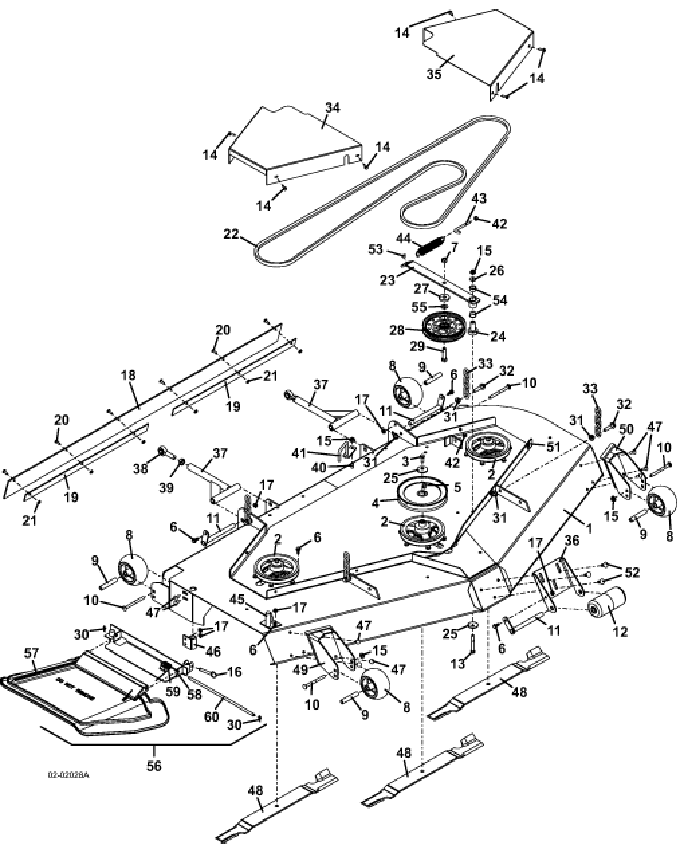

220/225 • Deck Assembly M172

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 Deck with Bolt-On Rollers

644161

2

Sheave

414745

3

Hex Bolt .375-24 x 1

243331

4

Sheave

415894

5

Square Key .250 x .875

281582

6

Hex Flange Whiz Bolt .312-18 x .75

253192

7

Loc Spiral Flange Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Center Roller 2 Piece Assembly

603725

13

Hex Bolt .375-16 x 3

243365

14

Hex Whiz Bolt .25-20 x .75

253175

15

Whiz Nut .375-16

253043

16

Hitch Pin .375 x 2

260400

17

Whiz Nut

253035

18

M1 72" Deck Flap

424206

19

M1 72" Deflector Strap

774223

20

Truss Whiz Bolt .250-20 x .750

253177

21

Whiz Nut .250-20

253025

22

Belt

382098

23

72 Deep F/A Idler Arm

824494

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer .531 x 1.625

883804

28

Idler

393250

29

Hex Bolt

243575

30

Cotter Ring

260608

31

Whiz Nut .437-14

253058

32

Hex Bolt .437-14 x 1.75 GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield M1 72

723330

35

left Belt Shield M1 72

723331

36

M1 72 Roller Mount

755071

37

Radius Arm Assembly - 255-61

604675

38

Rod End

265665

39

Nut .625-18

254493

40

Flange Whiz Bolt .375-16 x 1

253203

41

M1 Deck Belt Guide

644086

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Shaft - Clevis

643235

46

Pivot Mount

643632

47

Carriage Bolt .312 x .75

247130

48

Medium Lift Blade - 25"

320250

-

Contour Blade - 25"

320252

-

High Lift Notch Blade - 25"

320253

-

Extreme High Lift Blade - 25"

320254

49

Rt Anti-Scalp Roller Mount

643842

50

Lt Anti-Scalp Roller Mount

643695

51

Speed Nut .250-20

254431

52

Carriage Bolt .375 x 1 GR

247253

53

Nylon Bearing

422520

54

Oilite Bearing .754 x .878 x .50

121756

55

Washer

257062

56

Discharge Shield Assembly

604749

57

Discharge Shield

422042

58

Discharge Shield Mount

644767

59

Torsion Spring

284406

60

Pin

780650
