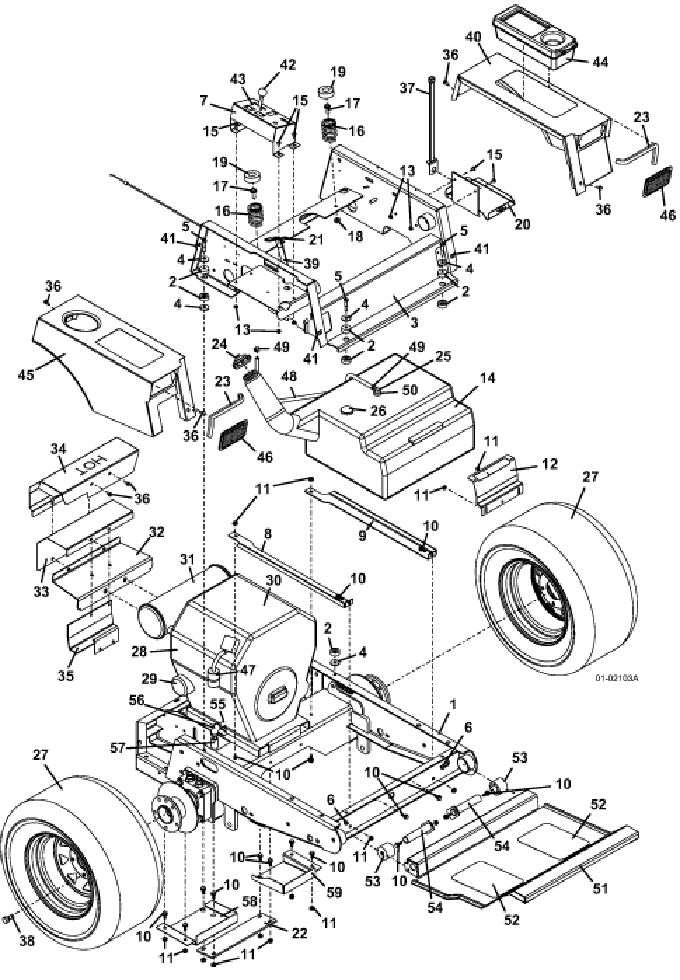

220/225 • Tractor Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200M1 Front Port Frame

644280

2

Rubber Step Bushing

257037

3

Frame - Top Section M1

644279

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

Console Panel M1

721232

8

Tank Rail - right

754051

9

Tank Rail - left

754052

10

Hex Flange Whiz Bolt .312-18 x .75

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722194

13

Whiz Nut .250-20

253025

14

M1 Fuel Tank Assembly (includes 24,25,26,51)

604800

15

Truss Whiz Bolt .250-.20 x .500

253176

16

Compression Spring

283516

17

Whiz Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box 220/225/227

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Fender Edge Trim - 11.5

822632

24

Fuel Tank Cap

100210

25

Fuel Tube

101814

26

In-Tank Fuel Gauge

141140

-

Grommet - Fuel Gauge Mount

424275

27

Wheel & Tire 23 x 10.5 x 12

483960

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Tire Only 24 x 12 x 12 AT101 w/ Bar Tread

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire 24 x 12 x 12

483965

-

12" Wheel & Tire w/ Bar Tread (right)

483968

-

12" Wheel & Tire w/ Bar Tread (left)

483969

28

20 HP Kohler Engine

100162

-

25 HP Kohler Engine

100167

29

Kohler Oil Filter

100802

30

Kohler Air Filter

100928

-

Kohler Air Filter Precleaner - 20 hp

100929

-

Air Filter - Outer Element

100936

-

Air Filter - Inner Element

100937

31

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

32

225 Lower Muffler Bracket

729312

33

Inner Panel - Shield

722309

34

Muffler Shield

722391

35

Shield Mount Bracket

643117

36

Hex Whiz Bolt .250-20 x .500

253173

37

Battery Hold Down Strap

604785

38

Lug Bolt .500 x .875

248565

39

Throttle Assembly -200/928D/928D2

603856

-

Control Cable Assembly

323640

40

200 Lt Snap Mount Fender

644273

-

220 Lt Trim Decal

163257

-

225 Lt Trim Decal

163259

41

Speed Nut .250-20

254431

42

Mechanical Choke 32.25 x 29.5

142214

43

Machine Screw

250168

-

Whiz Nut 10-24

253020

44

Tool Box

422040

45

200 Rt Snap Mount Fender

644272

-

220 Rt Trim Decal

163256

-

225 Rt Trim Decal

163258

46

Work Lamp Hole Plug

422079

47

Kohler Fuel Filter

101001

48

Fuel Line Hose (19.5" long)

821736

49

Hose Spring Clamp

280260

50

Fuel Tube Bushing

101875

51

M1 On-Frame Foot Rest

644256

-

M1 Frame-Mount Foot Rest

644228

52

Foot Rest Tread

420902

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

ELL

362215

57

Hose Assembly

424319

58

right Debris Shield

723024

59

left Debris Shield

723025

60

Decal Set - 220 Mower

604303

61

Decal Set - 225 Mower

604304
