Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

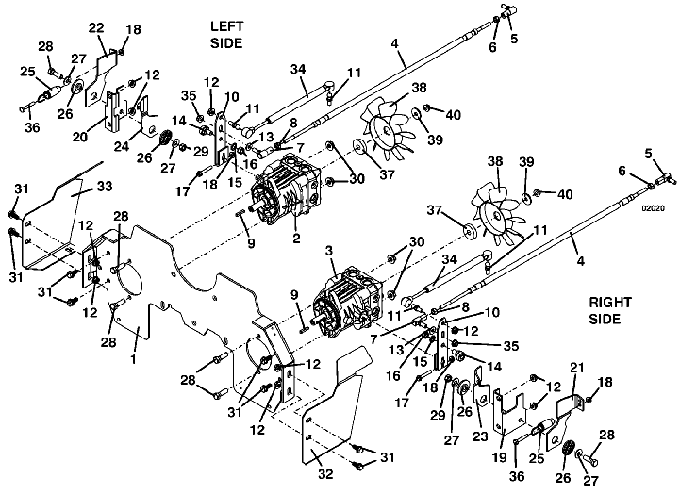

220/225 • Drive Assembly 225(continued)

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate 200 w/Fans

644634

2

Lt Hydro Pump w/Shaft

391460

3

Rt Hydro Pump w/Shaft

391461

4

M1 200 Steering Linkage

604525

5

Ball Joint, Right

265615

6

Nut

254441

7

Ball Joint, Left

265616

8

Nut

254444

9

Square Key

281560

10

10A Pump Control Arm

754094

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Nut - Whiz

253025

19

321 10A Neutral Return Mount

754072

20

321 10A Lt Neutral Return Mount

754073

21

right Neutral Return Front Arm

729136

22

left Neutral Return Front Arm

729137

23

right Neutral Return Arm

729138

24

left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Whiz Nut

253043

31

Hex Flange Whiz Bolt

253192

32

225 Rt Pump Plate Shield

754103

33

225 Lt Pump Plate Shield

754104

34

Damper

285031

35

Whiz Nut

253038

36

Hex Bolt

243035

37

10A Fan Mount Hub

885123

38

7" Nylon Clockwise Fan

320857

39

Retainer Washer

774015

40

Whiz Nut

253038
