Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

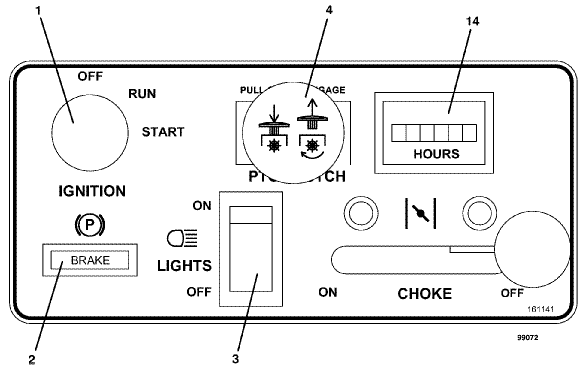

223 / 227 • Console

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Nut .625-32

254498

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

14

Snap-In Hour Meter

141551

22

Console Decal

161141

Return to 223/227 Index Return to Top
