Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

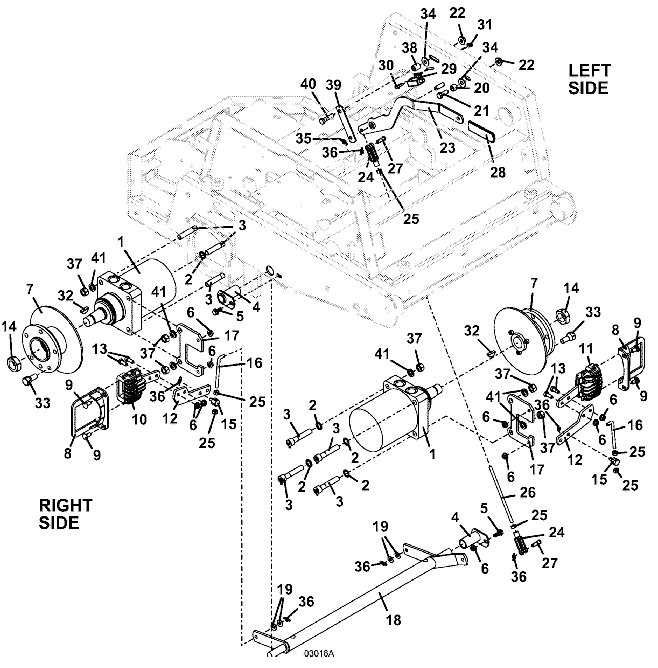

223 / 227 • Wheel Motor & Brake Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603603

2

Lock Washer

257430

3

Pin Head Bolt Assembly

604160

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Brake Rotor - 8.0

775192

-

Socket Head Screw

259592

8

Caliper Mount

644121

9

Carriage Bolt .312 x .75

247130

10

Caliper Brake Assembly- counterclockwise

481103

-

Brake Pad Kit

603150

11

Caliper Brake Assembly- clockwise

481102

-

Brake Pad Kit

603150

12

Brake Caliper Arm M1

776056

13

Whiz Bolt .312-18 x .500

243195

14

Nut

254522

15

Brake Linkage Pin

880926

16

928 Brake Linkage Rod

730158

17

Brake Mount- 7.75 Rotor

776174

18

Brake Tube 200/300B

644172

19

Washer

257032

20

Spacer

902280

21

Hex Bolt .375-16 x 1

243330

22

Whiz Nut .375-16

253043

23

Brake Lever - M1

644447

24

Clevis Yoke

265537

25

Nut .312-24

254441

26

Linkage Rod

780157

27

Clevis Pin .312 x 1

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut 10-24

253020

32

Woodruff Key .312 x 1

281860

33

Lug Bolt .500 x .875

248565

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606

37

Nut

254470

38

Spacer

902283

39

Reinforcement Pin M1

774145

40

Hex Bolt

243340

41

Lock Washer

257432
