Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

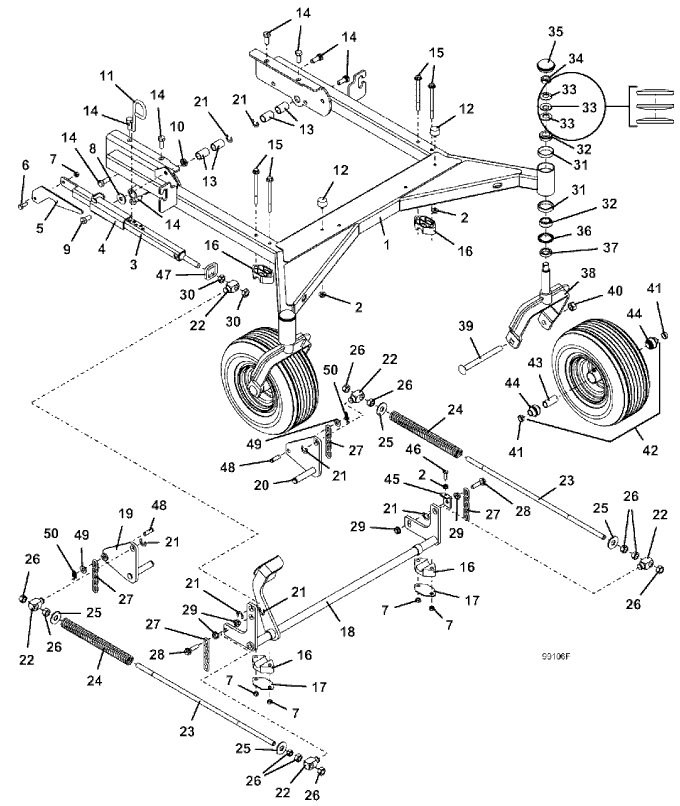

223 / 227 • Deck Carrier Assembly - M172

2006

72 Inch Deck Carrier

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier - M172

644135

-

Cutting Height Decal

162187

2

Whiz Nut

253035

3

M1 Height Adjustment Tube

644778

4

Latch Tube Guide

644305

5

Deck Latch

775104

6

Hex Bolt

243330

7

Lock Nut

253890

8

Nylon Washer

821516

9

Hex Bolt

243560

10

Nylon Nut Insert

253470

11

Height Adjustment Deck Pin

730434

12

Rubber Bumper

424052

13

Oilite Bearing

121766

14

Hex Bolt

243565

-

Spiral Flange Lock Nut

253067

15

Flange Bolt

253215

16

Bearing Block - M1

423643

17

Lift Bearing Plate

774064

18

M1 Deck Lift Lever

644524

19

Right Rear Deck Rocker - M1

644707

20

Left Rear Deck Rocker - M1

644708

21

External Retainer

263529

22

Spring Rod Mount Shaft

882035

23

Spring Shaft

780663

24

Compression Spring

283395

25

Washer

257080

26

Nut

254490

27

Chain - 5 Links M1

820331

28

Hex Bolt GR 8

243458

29

Whiz Nut

253058

30

Nut

254493

31

Bearing Cup

123522

32

Taper Bearing 1.000 ID

122522

33

Bushing Washer

257320

34

Nylon Toplock Jam Nut

254505

35

Dust Cap

481434

36

Seal

125855

37

Spacer

282615

38

Fork & Lock Nut Assembly

604365

39

Carriage Bolt

247726

40

Lock Nut

253970

41

Axle Spacer

902422

42

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

43

Rear Axle Center Spacer

902429

44

Wheel Ball Bearing - .625 DP

120048

45

Adjusting Strap

732586

46

Hex Bolt

243205

47

Height Adjustment Spacer

423696

48

Clevis Pin

261405

49

Washer

257051

50

Cotter Ring

260612
