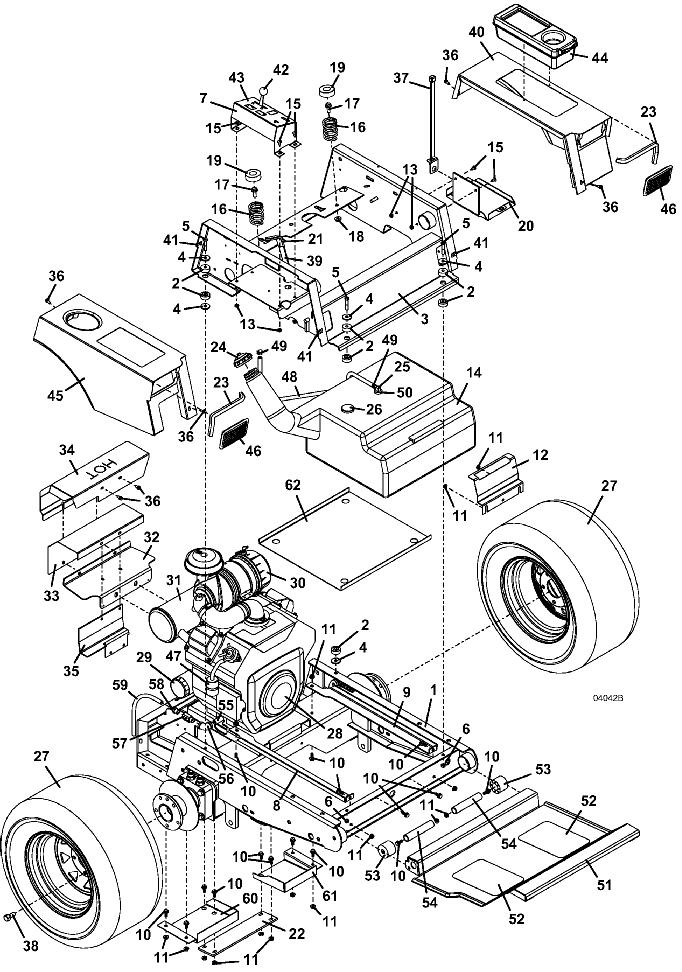

223 / 227 • Tractor Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200M1 Front Port Frame

644280

2

Rubber Step Bushing

257037

3

200 03 Upper Frame

644279

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

Console Panel M1

721232

8

Tank Rail - right

754051

9

Tank Rail - left

754052

10

Hex Flange Whiz Bolt .312-18 x .75

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722194

13

Whiz Nut .250-20

253025

14

M1 Fuel Tank Assembly

604800

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box 220/225/227

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Fender Edge Trim - 11.5

822632

24

Fuel Tank Cap

100210

25

Fuel Tube

101814

26

In-Tank Fuel Gauge

141140

-

Grommet - Fuel Gauge Mount

424275

27

Wheel & Tire 23 x 10.5 x 12

483960

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Turf Tire 23 x 10.5 x 12

482485

-

Wheel & Tire 24 x 12 x 12

483965

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Turf Tire 24 x 12 x 12

482486

-

12" Wheel & Tire Bar (right)

483968

-

12" Wheel & Tire Bar (left)

483969

-

Tire Only 24 x 12 x 12 AT101 Bar

482487

28

23 HP OHV M1 Kohler Engine

100158

-

27 HP Kohler AC Engine

100189

29

Kohler Oil Filter

100802

30

Air Filter - Outer Element

100936

-

Air Filter - Inner Element

100937

31

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

32

Lower Muffler Bracket 225

729312

33

Inner Panel - Shield

722309

34

Muffler Shield

722391

35

Shield Mount Bracket

643117

36

Hex Whiz Bolt .250-20 x .500

253173

37

Battery Hold Down Strap

604785

38

Lug Bolt .500 x .875

248565

39

Throttle Assembly -200/928D/928D2

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

40

Fender - M1 left Inset Light

644273

-

left .06 Decal 223 Trim

163405

-

left .06 Decal 227 Trim

163409

41

Speed Nut .250-20

254431

42

Mechanical Choke 32.25 x 29.5

142214

43

Console Panel 200 with Decal

693115

44

Tool Box

422040

45

right Snap Mount Fender

644272

-

right .06 Decal 223 Trim

163404

-

right .06 Decal 227 Trim

163408

46

Plug for Work Lamp Hole

422079

47

Kohler Fuel Filter

101001

48

Fuel Line Hose (19.5" long)

821736

49

Hose Spring Clamp

280260

50

Fuel Tube Bushing (Grommet)

101875

51

M1 On-Frame Foot Rest

644256

-

M1 Frame-Mount Foot Rest

644228

52

Foot Rest Tread

420902

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

ELL

362215

57

Oil Drain Valve

143610

58

Nylon Fitting

363854

59

Oil Drain Tube

821752

60

right Hydro 200 Debris Shield

723024

61

left Hydro 200 Debris Shield

723025

62

M1 Tank Shield

722495

63

Decal Set - 223

605297

64

Decal Set - 227

605298
