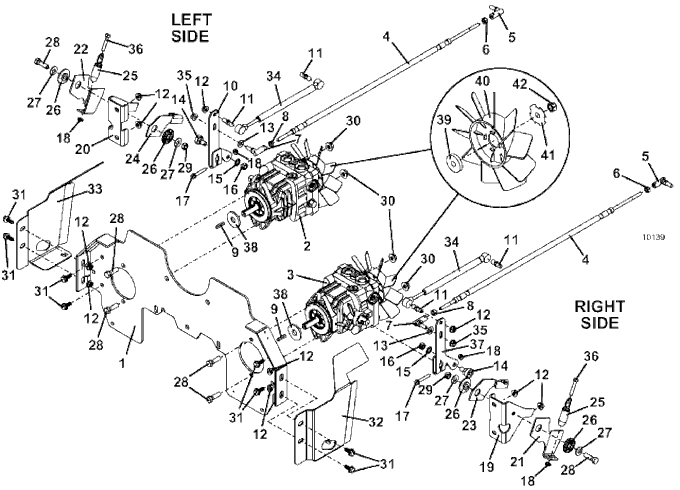

223 / 227 • Drive Assembly - diagram 2

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate with Fans - 200

644634

2

H4 Hydro Pump with 7" Fan - Left

391446

3

H4 Hydro Pump with 7" Fan - Right

391447

4

Steering Linkage - M1

604524

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key .187 x 1

281560

10

200 Left Control Arm

724953

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

Neutral Return Mount - Right 200

724956

20

Neutral Return Mount - Left 200

724957

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Whiz Nut .375-16

253043

31

Hex Flange Whiz Bolt .312-18 x .75

253192

32

Right Pump Plate Shield 200

729648

33

Left Pump Plate Shield 200

729649

34

Damper

285031

35

Whiz Nut .312-24

253038

36

Hex Bolt .250-20 x 1.500

243035

37

200 Right Control Arm

724952

38

Pump Pulley Spacer

884309

39

H2 Fan Hub

130430

40

H2 & T Hydro Fan

130431

41

Fan Retainer Washer

130432

42

Nylon Insert Nut

253461
