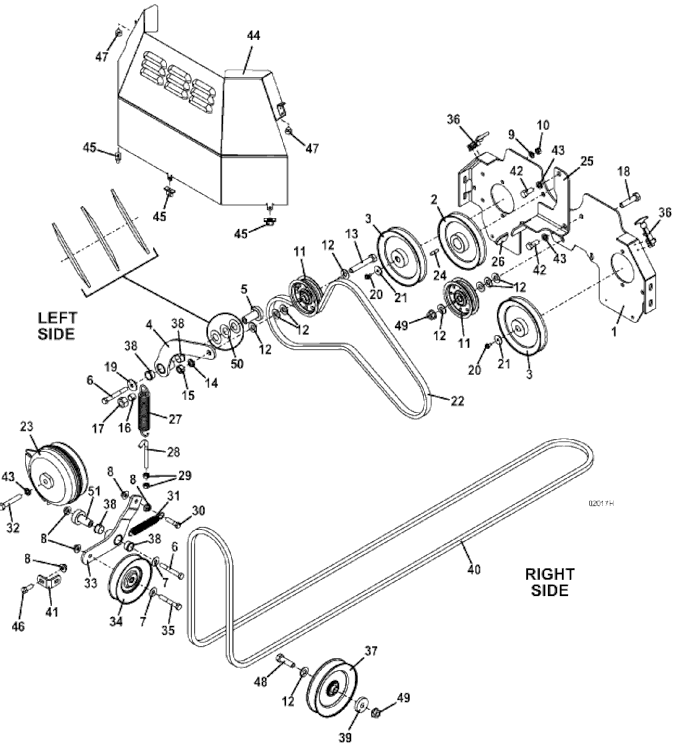

223 / 227 • Drive Assembly - diagram 1

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate with Fans - 200

644634

2

Sheave

415899

3

Sheave

415907

4

Idler Arm - 200 Pumps

824573

5

Pedestal Bearing

121651

6

Hex Bolt .375-16 x 3

243365

7

Washer

257040

8

Whiz Nut .375-16

253043

9

Lock Washer

257412

10

Lock Nut .375-16

253890

11

Idler Pulley

393195

12

Washer

257062

13

Full Thread Hex Bolt .500-13 x 3 GR 5

243601

14

Lock Washer

257432

15

Nut .500-13

254470

16

Nylon Bearing

422558

17

Lock Nut .500-13

253930

18

Hex Bolt .500-13 x 2

243580

19

Washer

774020

20

Hex Flange Bolt

270821

21

Flat Washer

257019

22

Belt

382034

23

Electric Clutch

388740

24

Square Key

281582

25

Anti Rotation Bracket M1

755125

26

Clutch Bracket Cover

422088

27

Spring Extension

283848

28

Idler Adjustment J Bolt

730391

29

Nut .375-16

254450

30

Hex Bolt .375-16 x 1.500

243340

31

Extension Spring with Swivel

283820

32

Hex Bolt .437-20 x 2.5

243470

33

Mule Drive Idler Arm

824486

34

Idler

393376

35

Hex Bolt .375-16 x 2.500

243355

36

Rubber Draw Latch

281301

37

Idler Pulley

393390

38

Oilite Bearing .754 x .878 x .50

121756

39

Washer

257160

40

Belt

382079

-

Belt

382085

-

Belt

382095

41

Idler Spring Bracket M1

732520

42

Hex Bolt .437-14 x 1

243445

43

Lock Washer

257422

44

Rear Shield Assembly - M1 225

604755

45

Rear Belt Shield Isolater

422090

46

Hex Bolt .375-16 x 1

243330

47

Rubber Bumper

424015

48

Hex Bolt

243575

49

Whiz Nut

253066

50

Spring Washer

257319

51

Pedestal Bearing

121650
