Genuine OEM Grasshopper® Mower Parts Diagrams

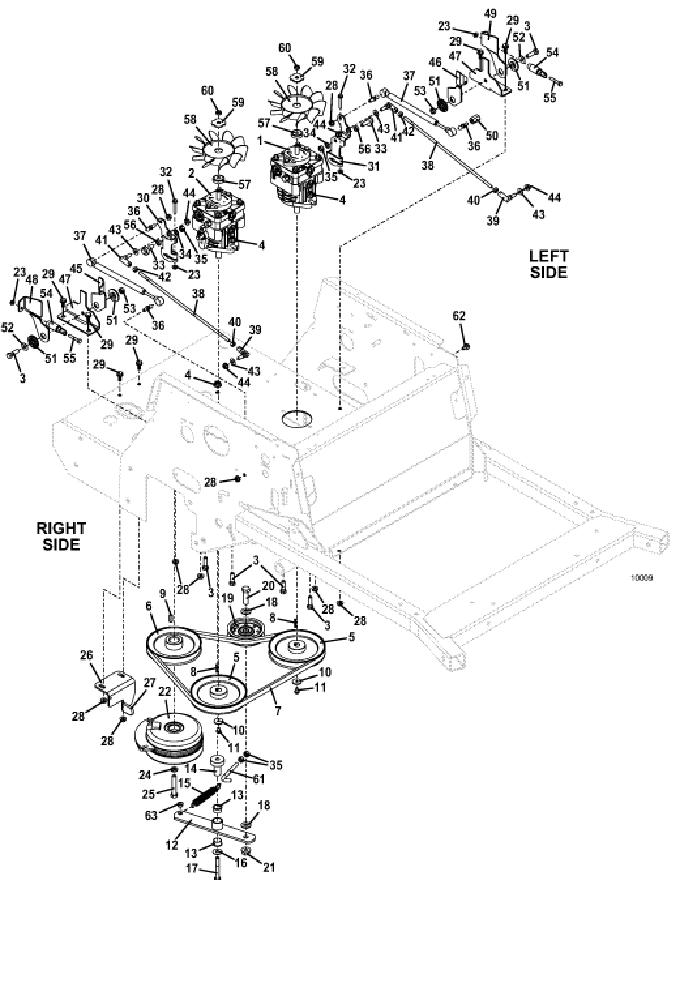

226V • Drive Assembly

2012

drive assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

left H3 Hydro Pump with 7" Fan

391442

2

right H3 Hydro Pump with 7" Fan

391443

3

Hex Bolt

243335

4

Whiz Nut

253043

5

Sheave

415907

6

Sheave

415905

7

Belt

382025

8

Square Key

281560

9

Square Key

281582

10

Flat Washer

774012

11

Hex Bolt

270821

12

200V Hydro Idler Arm Assembly

824469

13

Oilite Bearing

121756

14

Pedestal Bearing

121650

15

Extension Spring with Swivel

283820

16

Washer

257040

17

Hex Bolt

243360

18

Washer

257062

19

Idler

393195

20

Hex Bolt

243575

21

Whiz Nut

253066

22

200V Electric Clutch with 1" Shaft

388751

23

Whiz Nut

253025

24

Lock Washer

257422

25

Hex Bolt

243470

26

200V Anti-Rotation Bracket

725540

27

Clutch Bracket Cover

422088

28

Whiz Nut

253035

29

Hex Flange Whiz Bolt

253192

30

Rt 200V Control Arm

724932

31

Lt 200V Control Arm

724933

32

Hex Whiz Bolt

253182

33

Eccentric Solid Roller Assembly

603731

34

External Star Washer

257410

35

Nut

254450

36

Ball Stud

265680

37

Damper

285031

38

Steering Linkage Rod

780175

39

Righthand Thread Ball Joint

265615

40

Nut

254441

41

Lefthand Thread Ball Joint

265616

42

Nut

254444

43

Washer

257020

44

Whiz Nut

253038

45

Neutral Return Arm

729398

46

Front left Neutral Return Arm

729399

47

200V Neutral Return Mount

724927

48

right rear Neutral Return Arm

729396

49

left rear Neutral Return Arm

729397

50

200V Steering Spacer

783729

51

Neutral Return Pivot Bearing

822304

52

Washer

257030

53

Lock Nut

253890

54

Extension Spring

283823

55

Hex Bolt

243035

56

Eccentric Roller Spacer

902277

57

H2 Fan Hub

130430

58

H2 & T Hydro Fan

130431

59

Fan Retainer Washer

130432

60

Nylon Insert Nut

253461

61

Idler Adjustment J Bolt

730391

62

Whiz Bolt

253189

63

Nylon Bearing

422520

return to 226V index return to top of page
