Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

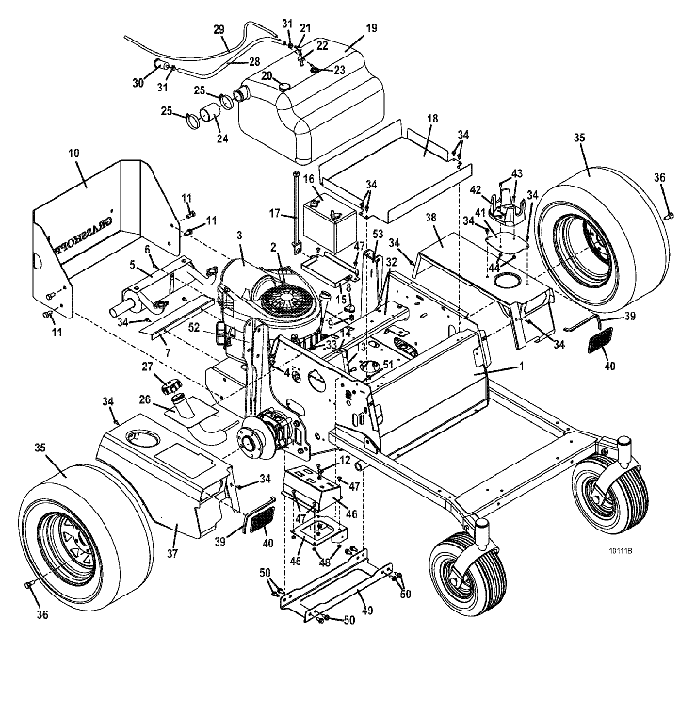

226V • Tractor Assembly

2012

tractor assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200V 48/52 Frame

645201

-

200V 61 Frame

645202

2

26hp Briggs & Stratton Pro Vertical Engine

100153

3

Cyclonic Air Filter

100919

4

Briggs Oil Filter

100803

5

Muffler for 20/24 hp Briggs & Stratton Vertical Engine

101197

-

Muffler Exhaust Gasket for Briggs & Stratton Vertical Engine

101043

6

Hex Bolt

243016

7

120 Heat Shield

722974

8

Street Ell

363515

9

Metal Pipe Plug

365515

10

200V Rear Shield

725900

11

Hex Bolt

243560

12

Mechanical Choke

142250

13

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

14

Handle Grip

422150

15

200V Battery Tray

723038

16

12 Volt Wet Battery

180125

-

12 Volt Dry Battery

180126

17

Battery Hold Down Strap

604785

18

200V Tank Shield

722926

19

200V Tank Assembly

605798

20

Fuel Intake Gauge

141142

-

Grommet

424275

21

Fuel Tube

363925

22

Grommet

101875

23

2011 Fuel Tank Valve

100216

24

Fuel Tank Filler Hose

422027

25

Screw Type Hose Clamp

280305

26

200 Fuel Filler

644886

27

Sealed Tether External Fuel Cap

100213

28

Fuel Hose

821769

29

Fuel Vapor Hose

821746

30

Briggs In-Line Fuel Filter

366560

31

Spring Hose Clamp

280260

32

200V Crossmember Seat

729577

33

Hex Whiz Bolt

253175

34

Hex Whiz Bolt

253173

35

Wheel & Turf Tire 23 x 10.5 x 12

483960

-

Turf Tire 23 x 10.5 x 12

482485

-

Wheel 12 x 8.5 x 5.75 (w/ 52 deck)

483445

36

Lug Nut

248565

37

Rt 200V Fender

644884

38

Lt 200V Fender

644885

39

Trim

822632

40

Work Lamp Hole Plug

422079

41

M2 Reservoir Access Panel

722804

42

Cup Holder

150225

43

Cap Screw

259030

44

Nut

254436

45

100 Console Bracket

644410

46

M2/200v Console

645102

47

Truss Whiz Bolt

253176

48

Whiz Nut

253025

49

200V Wheel Motor Mount/Crossmember

724924

50

Flange Whiz Bolt

253203

-

Whiz Nut

253043

51

Truss Whiz Bolt

253177

52

right 200V Wheel Motor & ROPS Mount

645206

53

left 200V Wheel Motor & ROPS Mount

645207

54

200V Decal Set

605349
