Genuine OEM Grasshopper® Mower Parts Diagrams

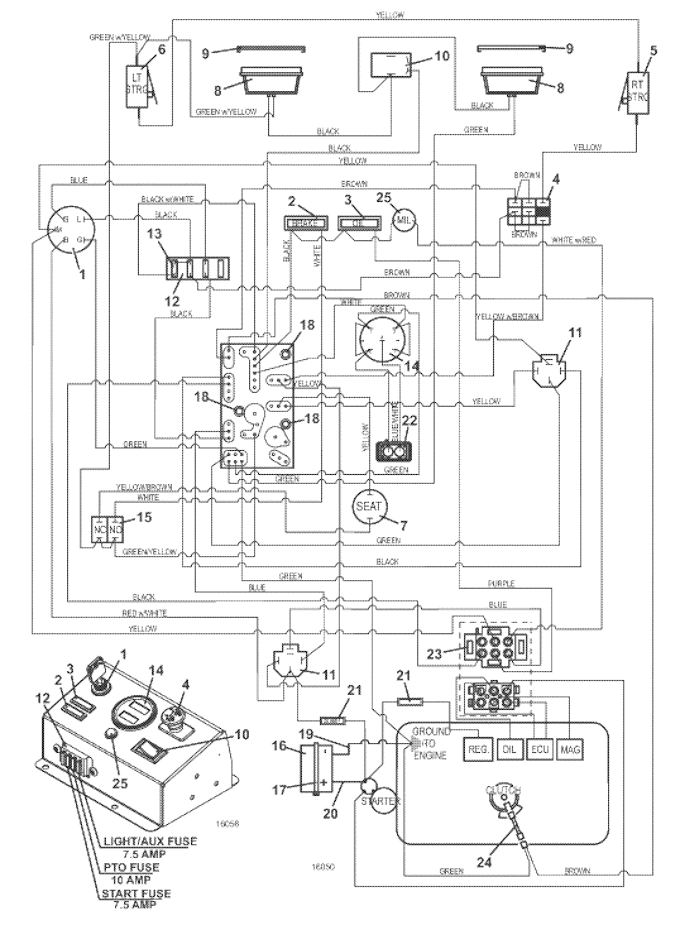

227V-EFI •Wiring Diagram

2017

Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Oil Light Indicator

182327

4

Push/Pull Switch

183925

-

9-Way Connector

184942

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Twist-In Seat Switch

183871

8

LED Flood Worklamp

182261

9

Snap Mount Worklamp Bezel

182251

10

Rocker Switch

184179

11

12V DC Relay with Mount

184271

12

Fuse Block

181720

-

Fuse ID Decal

162355

-

Fuse Block Cover

181721

13

30 amp Auto ATC Fuse

181470

-

7.5 Amp Auto ATC Fuse

181460

-

10 Amp Auto ATC Fuse

181462

14

Fuel Guage with Hour Meter

141122

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

200V Battery Tray

723038

17

Battery Hold Down Strap

604785

18

PC Board Support Spacer

423690

19

20" Black Battery Cable

180280

-

Whiz Nut

253035

-

Flanged Hex Whiz Bolt

253193

20

16" Red Battery Cable

180315

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

21

Inline Auto Fuse Holder

181735

21

30 Amp Auto ATC Fuse

181470

22

2 Terminal Connector

184907

-

Fuel Sender

141235

23

6 Terminal Connector (Amp)

184911

-

Mate N-Lock Pin

181768

24

Pigtail Cable Assembly

388840

25

MIL Light Indicator

182322

26

Console Decal

161093

26

227V-EFI Wiring Assembly

605922
