Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

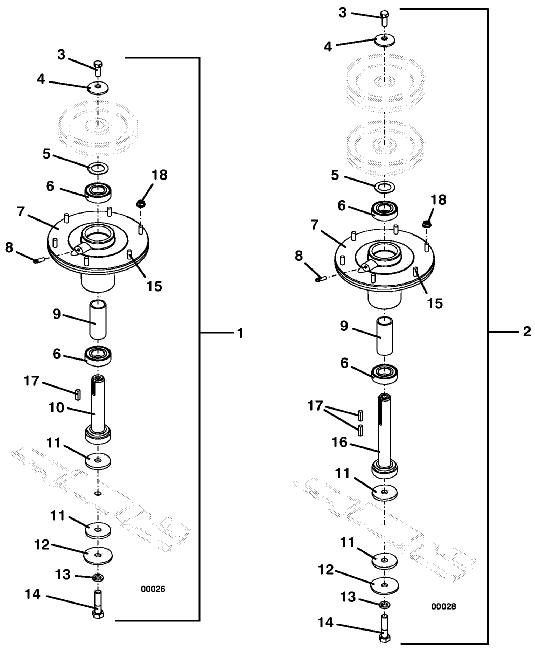

321D • Blade Spindle Assembly - M152 / M161

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left & Right Spindle Assembly (includes items 3-15)

623781

2

Center Spindle Assembly (includes items 3-9 and 11-16)

623782

3

Hex Bolt .375-24 x 1

243331

4

Cupped Washer

257041

5

Washer

257106

6

Ball Bearing 25mm

110082

7

Spindle Housing Assembly with Studs

604421

8

Grease Fitting 1/4-28 x 1.125

280745

9

Deep Spindle Bearing Spacer

903643

10

Spindle Shaft Assembly - 5.75

604775

11

Fiber Washer

421200

12

Washer

257061

13

Lock Washer

257432

14

Hex Bolt .500-20 x 2

243581

15

Stud Bolt .312-18 x 1.25

247141

16

Spindle Shaft Assembly

604773

17

Square Key .250 x .875

281582

18

Whiz Nut

253035
