Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

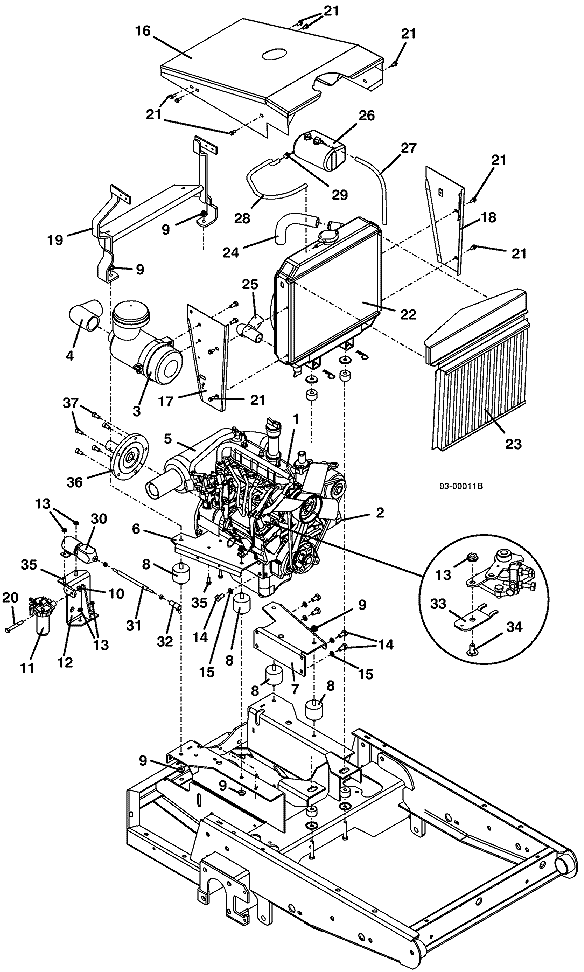

321D • Engine Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Kubota Air Filter

100940

4

Formed Air Intake Hose

424515

5

Muffler & Gasket Assembly

603590

-

Kubota Flange Exhaust Gasket

101040

6

Engine Mount - wide right

643322

7

Engine Mount - wide left

643323

8

Vibration Isolator

424078

9

Whiz Nut .375-16

253043

10

Whiz Nut

253035

11

Kubota Fuel Filter

101000

12

Fuel Solenoid/Filter Mount

643591

13

Whiz Nut

253025

14

Hex Head

271120

15

Lock Washer

275580

16

700 Hood with Decals

693300

17

right Grille Support

643799

18

left Grille Support

643800

19

300S Rear Hood Support

644762

20

Hex Bolt

243235

21

Hex Whiz Bolt .25-20 x .500

253173

22

Kubota Radiator

101610

23

Grille (with Guard)

644663

24

Upper Radiator Hose

101054

25

Lower Radiator Hose

101055

26

Expansion Tank

422012

27

Clear Vent Hose

821748

28

Hose

821749

29

Spring Hose Clamp

280260

30

Fuel Solenoid Assembly

603350

31

Fuel Solenoid Cable Assembly

603209

32

Ball Joint

265610

33

Throttle Linkage Extension

723016

34

Whiz Truss Bolt

253176

35

Hex Whiz Bolt

253175

36

Clutch Stub Shaft

824637

37

M8 Socket Head Screw

270075
