Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

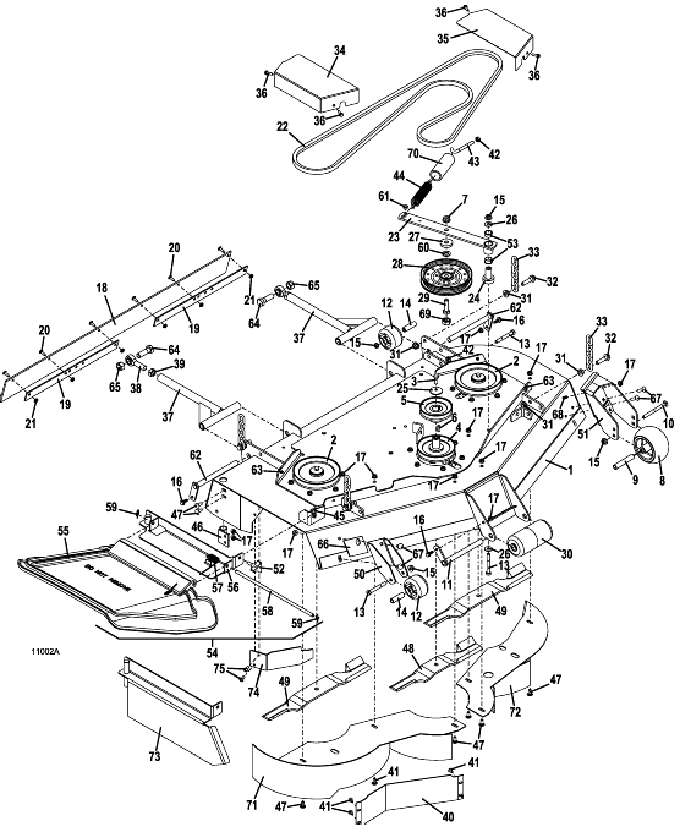

321D • Deck Assembly - M148

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M148D Deck

645155

2

Sheave

415892

3

Hex Bolt

243331

4

Big Split Sheave

415902

5

Split Sheave

415891

6

Square Key

281582

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Wheel 5 x 2.75

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller 3 x 2"

426122

13

Hex Bolt .375-16 x 3

243365

14

Roller Mount Spacer

902284

15

Whiz Nut .375-16

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M148" Deck Flap

424179

19

Rt Deflector Strap

774219

20

Bolt

253181

21

Whiz Nut .250-20

253025

22

Belt

382086

23

Idler Arm Assembly

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Washer

257160

28

Idler

393250

29

Hex Bolt

243575

30

2 Piece Center Roller Assembly

603725

31

Whiz Nut

253058

32

GR 8 Hex Bolt

243458

33

Chain - 5 Links M1

820331

34

Rt Belt Shield M1/48-D

722938

35

Lt Belt Shield M1/48-D

722939

36

Hex Whiz Bolt .25-20 x .75

253175

37

Radius Arm Assembly - 321D/48-D

604674

38

Rod End

265665

39

Nut .625-18

254493

40

M148-D Aux Front Shroud

729777

41

Truss Whiz Bolt

253176

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speed Nut

254448

46

Pivot Mount

643632

47

Carriage Bolt .312 x .75

247130

48

High Lift Notch Blade - 15"

320234

-

Medium Lift Blade - 15"

320231

-

Contour Blade - 15"

320233

-

High-Low Mulch Blade - 15"

320235

49

High Lift Notch Blade - 18"

320239

-

Medium Lift Blade - 18"

320236

-

Contour Blade - 18"

320238

-

High-Low Mulch Blade - 18"

320240

49

Laser Edge High Lift Blade - 18"

320317

-

Shredder Blade - 18"

320321

50

Rt M1/M248 Formed Roller Mount

754203

51

Anti-Scalp Roller Mount - left

645579

52

3 Prong HD Deck Stud

252821

53

Oilite Bearing

121756

54

Flex Discharge Shield Assembly

604318

55

Flex Discharge Shield

422042

56

Flex Discharge Shield Mount

644570

57

Torsion Spring

284406

58

Flex Discharge Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062

61

Nylon Bearing

422520

62

9772 Radius Arm Pin

644636

63

Speed Nut

254431

64

Hex Bolt

243810

65

Lock Nut

253970

66

Roller Spacer

776231

67

Carriage Bolt

247135

68

Whiz Hex Flange Bolt

253193

69

Idler Arm Stabilizer Cap

423670

70

Clear Tubing

822686

71

M1/48-D Rt Mulch Plate

645600

72

M1/48-D Lt Mulch Plate

645601

73

3452/61/72 Mulch End Cap

644058

74

Discharge Deflect Shroud

729686

75

Truss Whiz Bolt

253177
