Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

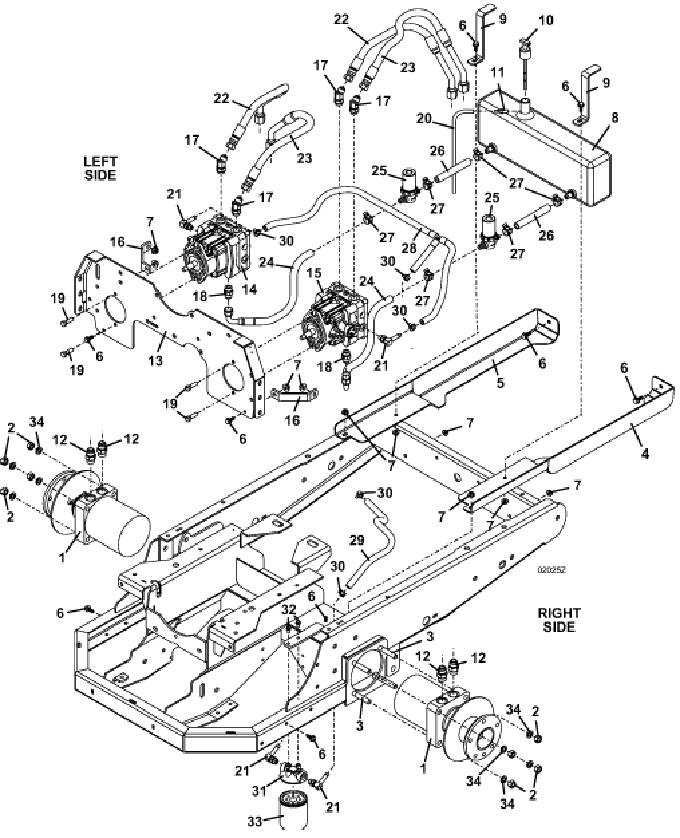

321D • Reservoir & Hose Assembly

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Nut

254470

3

Wheel Motor Diamond Head Bolt

243597

4

300/400 Rt Tank Rail

645802

5

300/400 Lt Tank Rail

645803

6

Hex Flange Whiz Bolt .312-18 x .75

253192

7

Whiz Nut

253035

8

M1 300/400 Oil Reservoir Assembly

603606

-

Grommet

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 degree Fitting

363638

9

Oil Tank Strap

732557

10

Oil Reservoir Dipstick - M1

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

-

O Ring

126529

-

O Ring

126537

13

Pump Plate

644619

14

Hydro Pump - left

391462

15

Hydro Pump - right

391463

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360046

-

O Ring

126527

-

O Ring

126535

18

Steel O-Ring Boss Fitting

363832

19

Hex Bolt

243335

20

Clear Vent Hose

821724

21

Adapter

360056

22

Hose Assembly

424375

23

Hose Assembly

424377

24

Hose Assembly

424321

25

In-Line Strainer

366553

26

Hydraulic Hose

821793

27

Spring Hose Clamp

280266

28

Return Hose Assembly

424317

29

Hydraulic Hose

821787

30

Spring Hose Clamp

280264

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Lock Washer

257432

Return to 321D Index Return to Top
