Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

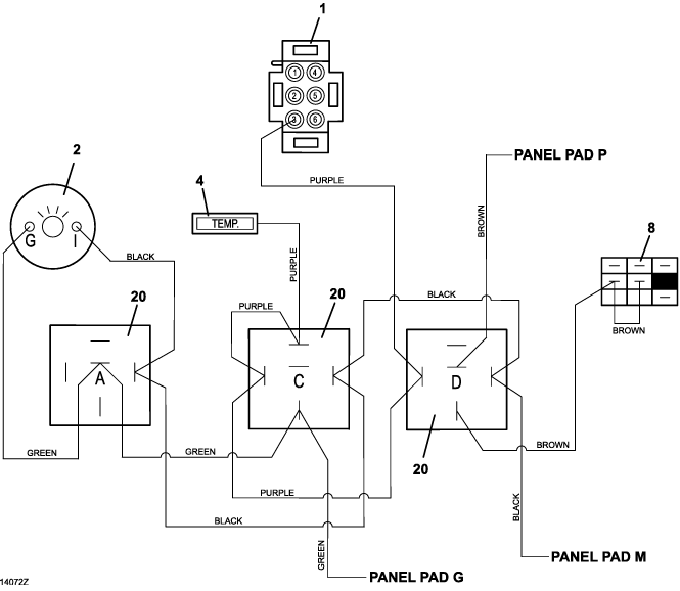

321D • High Temp Wiring Diagram

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temerature Zoned Electric Guage

141165

2

Voltmeter Guage

141203

4

Temperature Indicator Light

182328

8

Push/Pull Switch

183925

20

12VDC Relay w/Diode

184266

Return to 321D 2015 Index Return to Top
