Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

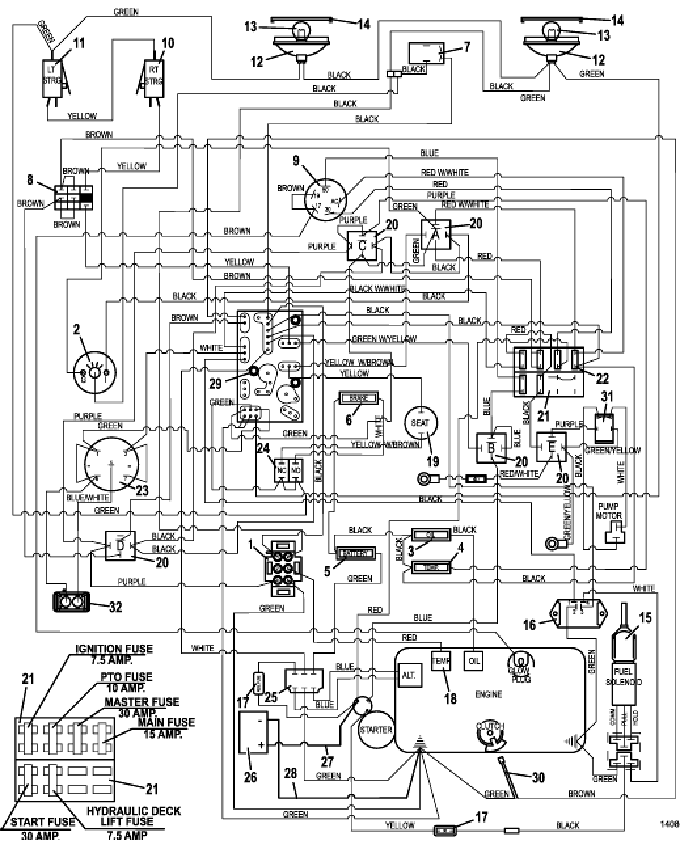

321D • Electrical Wiring

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141165

2

Voltmeter Gauge

141203

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

Left Steering Switch Mount

720161

12

Worklamp (Flood)

182253

13

Light Bulb for Worklamp

182005

14

Snap-Mount Bezel for Worklamp

182251

15

Fuel Solenoid Assembly

603350

16

Switch Interlock Module

184220

17

Inline Auto Fuse Holder

181735

-

Auto ATC 30 Amp Fuse

181470

18

Temperature Sender

141224

19

Seat Safety Switch

183871

20

Relay w/Diode - 12 volt DC

184266

21

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Wire Fuse Clip

184472

22

Auto ATC 30 Amp Fuse

181470

-

Auto ATC 7.5 Amp Fuse

181460

-

Auto ATC 10 Amp Fuse

181462

-

Auto ATC 15 Amp Fuse

181465

23

Snap-in Hour Meter

141551

-

Fuel Lever Gauge - Console Mount

141122

24

Brake Interlock Switch

183894

25

Voltage Regulator - 12 volt

185530

26

12 volt Side Post Wet Battery

180130

-

12 volt Side Post Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box Assembly with Strap

603104

-

Battery Hold Down Strap

604785

27

Red 42" Battery Cable

180340

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

28

Black 39" Battery Cable

180295

29

PC Board Support Spacer

423690

30

Modified Pigtail Clutch

604431

31

Toggle

184084

32

2 Terminal Connector

184907

-

Fuel Sender

141235

33

321D Wiring Assembly

606853
