Genuine OEM Grasshopper® Mower Parts Diagrams

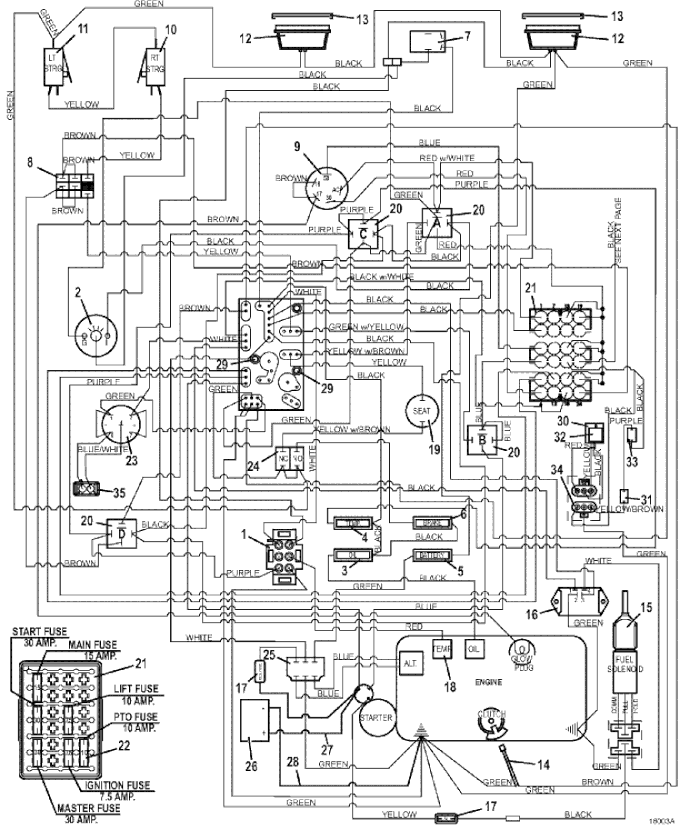

321D • Electrical Wiring

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141165

2

Voltmeter Gauge

141203

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

Left Steering Switch Mount

720161

12

LED Worklamp (Flood)

182261

13

2 Terminal Connector

184907

14

Pigtail Cable Assembly

388840

15

Fuel Solenoid Assembly

603350

16

Switch Interlock Module

184220

17

Inline Auto Fuse Holder

181735

-

Auto ATC 30 Amp Fuse

181470

18

Temperature Sender

141224

19

Seat Safety Switch

183871

20

Relay w/Diode - 12 volt DC

184266

21

Fuse Block

181725

-

M1 2017 Kubota Fuse ID Decal

162340

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

22

30 Amp Fuse

181456

-

7.5 Amp Fuse

181451

-

10 Amp Fuse

181452

-

15 Amp Fuse

181453

23

Fuel Lever Gauge - Console Mount

141122

24

Brake Interlock Switch

183894

25

Voltage Regulator - 12 volt

185530

26

12 volt Side Post Wet Battery

180130

-

12 volt Side Post Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box Assembly with Strap

603104

-

Battery Hold Down Strap

604785

27

Red 42" Battery Cable

180340

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

28

Black 39" Battery Cable

180295

29

PC Board Support Spacer

423690

30

Mount Tilt Switch

722747

31

Hydraulic Solenoid Valve

144950

32

Power Components Tilt Switch

183710

33

Sealed Dome Switch

183940

34

3Way Male WP Connector

184973

35

2 Terminal Connector

184907

-

Fuel Sender

141235

36

321D Wiring Assembly

605918

Return to 321D Index Return to Top
